IBM System x3650 M4 Type 7915 Problem Determination And Service Guide

Attention:
v Do not press the microprocessor into the socket.
v Make sure that the microprocessor is oriented and aligned correctly in
the socket before you try to close the microprocessor retainer.
v Do not touch the thermal material on the bottom of the heat sink or on
top of the microprocessor. Touching the thermal material will
contaminate it.

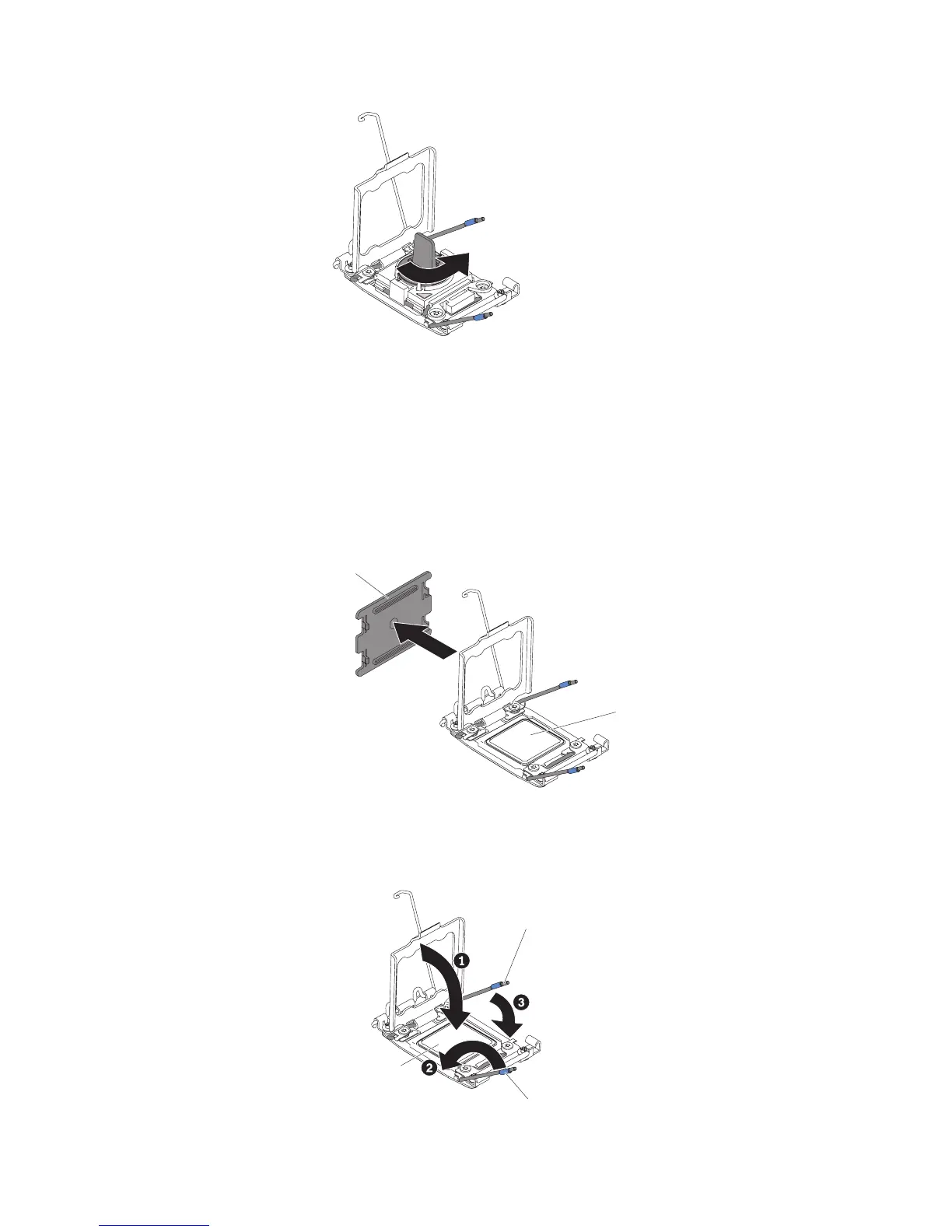

8. Remove the microprocessor socket cover, tape, or label from the surface of
the microprocessor socket, if one is present. Store the socket cover in a safe
place.
Socket cover
Microprocessor
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 193.
9. Close the microprocessor socket release levers and retainer:
Microprocessor
Microprocessor
release le
ver
Microprocessor
release le
ver
Chapter 5. Removing and replacing server components 285

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
