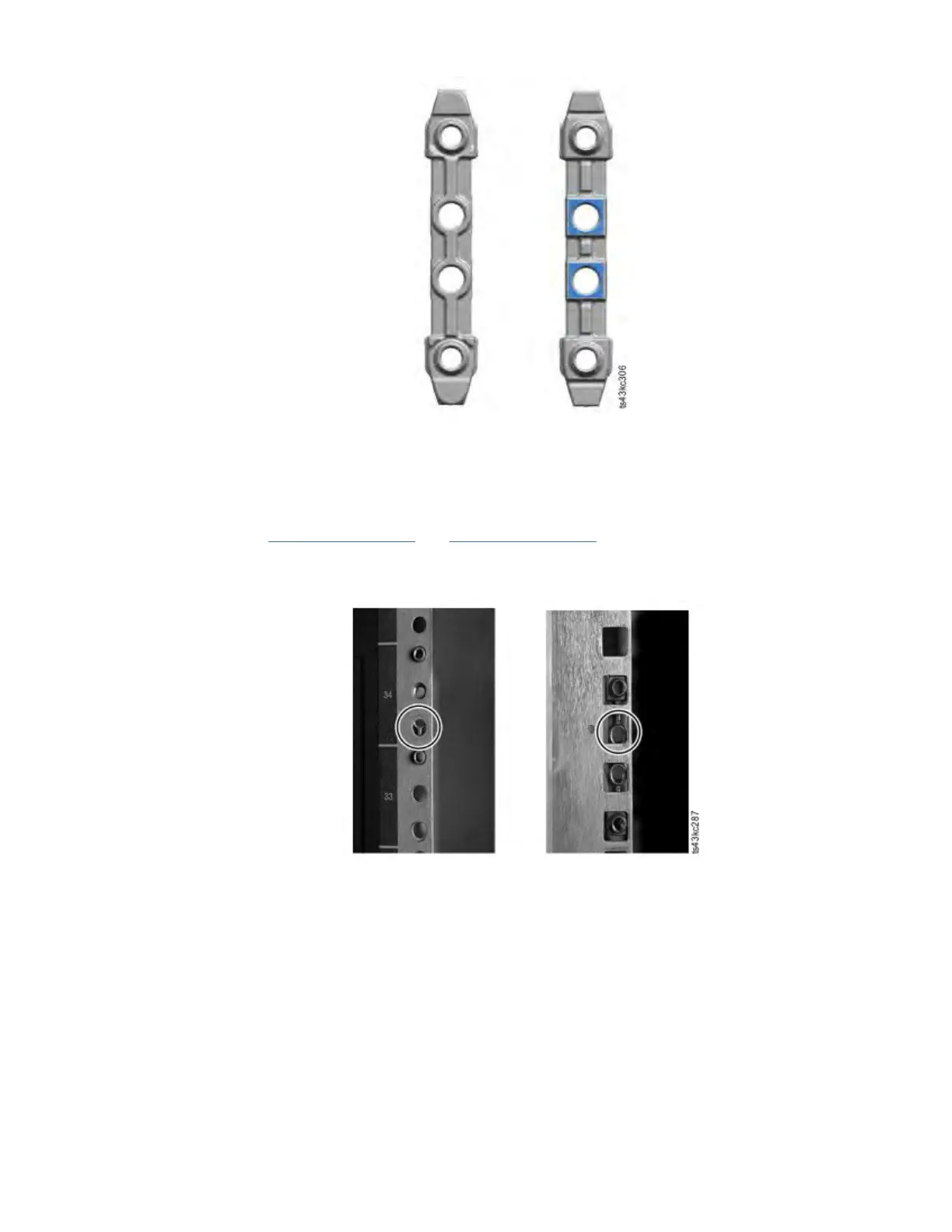

Figure 36. Universal rack connector

b. On the inside of the racks, facing out, mount the connectors at the appropriate height to the right

and left rack posts. Mount them in the middle hole of the height unit (the middle of a height unit is

the hole between two wide and neighboring division bars) in both front and back. The four screw

holes must align with the holes on your rack. If they do not, the blocks are not in the correct

location. See Figure 37 on page 57 and Figure 38 on page 58.

Note: If the connectors are installed incorrectly, the screws on the connectors do not match the

holes on the frames. The circles in the graphics highlight the mismatch.

Figure 37. Incorrect connector locations

IBM Condential

Chapter 3. Installing57
