Icom IC-7200

1-10
1

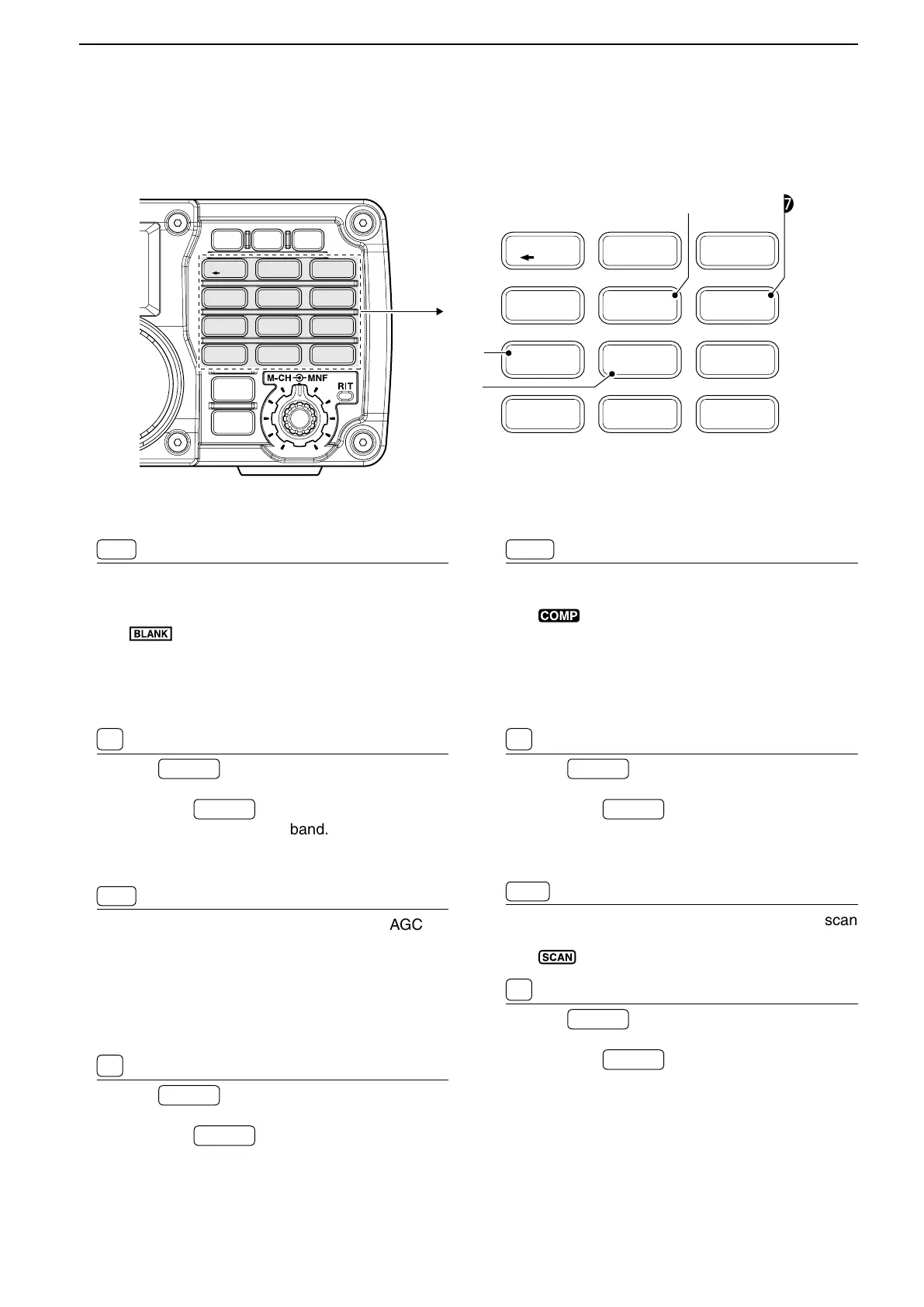

PANEL DESCRIPTION
@6 MEMORY CLEAR/5/14 MHz BAND KEY
M-CL
Hold down for 1 second to clear the displayed ➥
frequency and operating mode in the selected
memory channel. (p. 7-6)
• “ ” appears above the memory channel num-
ber.
Hold down for 1 second, to select a default option ➥
or value when in the Set mode or the Quick Set
mode. (p. 10-2, 10-3)
5
14
Push ➥
F-INP ENT
BAND
, then push this key to input the
number ‘5.’ (p. 3-6)
Hold down ➥
F-INP ENT
BAND
for 1 second, then push this
key to select the 14 MHz band. (p. 3-4)
@7 AGC/6/18 MHz BAND KEY
AGC
Push to toggle the time constant for the AGC cir- ➥
cuit fast or slow. (p. 5-3)
• “F.AGC” appears when fast AGC is selected; no indi-
cation appears when slow AGC is selected
Hold down for 1 second to turn OFF the AGC ➥
function.
• “AGC-OFF” appears.
6
18
Push ➥
F-INP ENT
BAND
, then push this key to input the
number ‘6.’ (p. 3-6)
Hold down ➥
F-INP ENT
BAND
for 1 second, then push this
key to select the 18 MHz band. (p. 3-4)
@8 SPEECH COMPRESSOR/7/21 MHz BAND KEY
COMP
Push to turn the Speech compressor function ➥
ON or OFF. (p. 6-6)
• “ ” appears when the speech compressor func-
tion is ON.
Hold down for 1 second to enter the speech com- ➥
pression level Set mode. Rotate [DIAL] to set the
compression level, then push the key again to re-
turn to normal operation.
7
21
Push ➥
F-INP ENT
BAND
, then push this key to input the
number ‘7.’ (p. 3-6)
Hold down ➥
F-INP ENT
BAND
for 1 second, then push this
key to select the 21 MHz band. (p. 3-4)
@9 SCAN/8/24 MHz BAND KEY
SCAN
Push to start/stop the programmed/memory scan
in the VFO/memory mode. (p. 8-4, 8-5)
• “ ” appears during a scan.
8
24
Push ➥
F-INP ENT
BAND
, then push this key to input the
number ‘8.’ (p. 3-6)
Hold down ➥
F-INP ENT
BAND
for 1 second, then push this
key to select the 24 MHz band. (p. 3-4)
i7200
MODE
TUNER
TS
FILTER
SPCH
V/M A/B
SPLIT
M-CL
SCAN
SET
ATT
P . AMP
COMP VOX
MNF
RIT
1
23
456
7
8
0
50
28
1814
10
21
24
=
7
3.51.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NRNB
V/M A/B
SPLIT
M-CL
SCANCOMP
VOX
MNF
RIT
1
23
456
7
8
0
50
28
1814
10
21
24
=
7
3.51.8
F-INP ENT
BAND
GENE
9
.
AGC
MW
@8
@6 @7
@9
Keypad (Continued) D
