Icom IC-7600

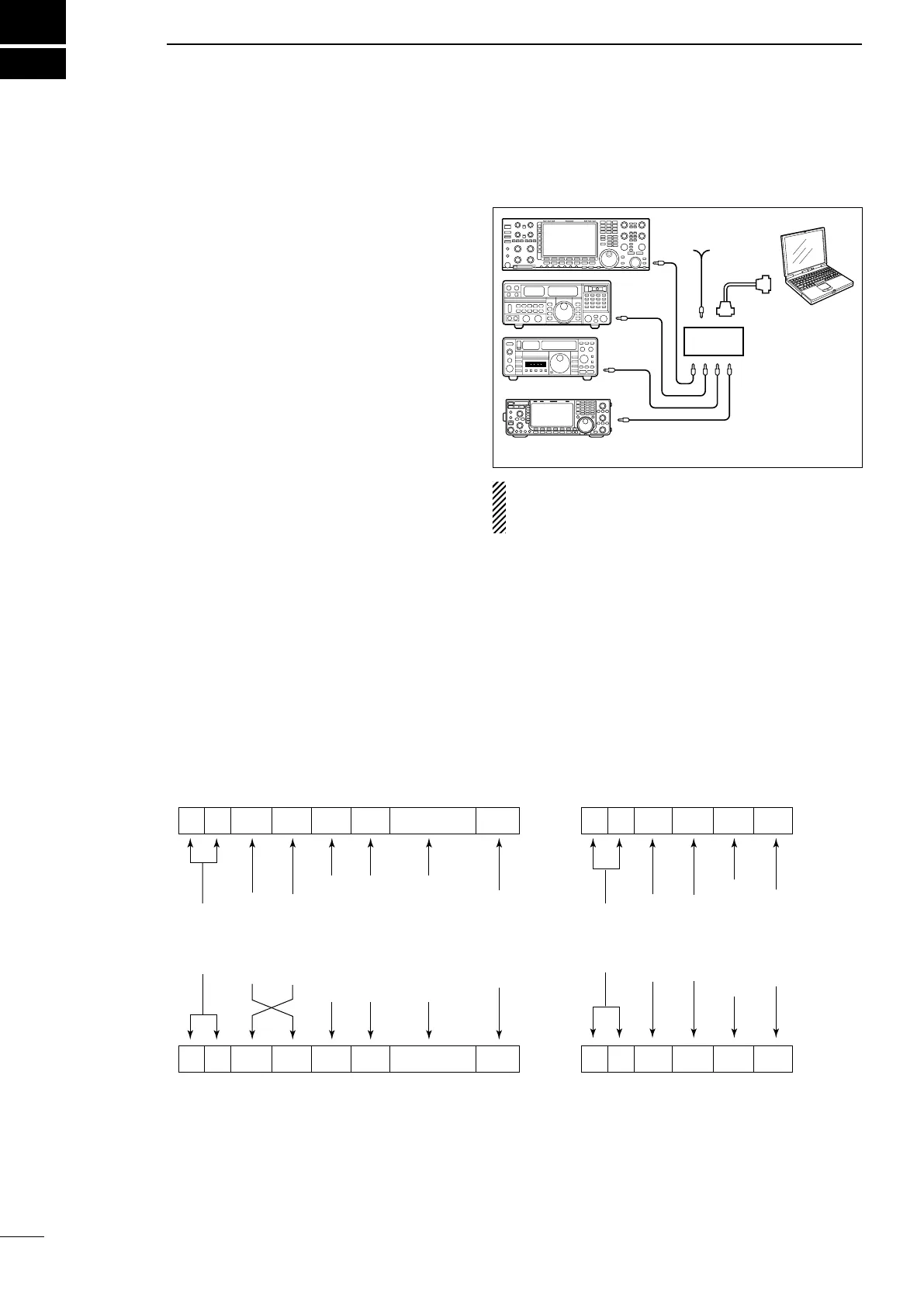

■ Remote jack (CI-V) information
Controller to IC-7600
FE FE 7A E0 Cn Sc Data area FD
Preamble
code (fixed)
Transceiver’s
default address
Controller’s
default address
Command number
(see the command table)
Sub command number
(see the command table)
BCD code data such as
for frequency, memory
number entry
(see the data content description)
End of message
code
(fixed)
OK message to controller
FE FE E0 7A FB FD
FE FE E0 7A FA FD
Preamble
code
(fixed)
Controller’s
default address
Transceiver’s
default address
OK code
(fixed)
End of message
code (fixed)
NG message to controller
NG code (fixed)
IC-7600 to controller
qwerty u
FE FE E0 7A Cn Sc Data area FD
qwerty u
12
159
CONTROL COMMAND
D Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to
command numbers. A data area or sub command is
added for some commands.
9−15V DC
PC
ct-17
mini-plug cable
IC-7600
RS-232C
cable
When the transceiver is connected to a PC with the
USB cable (user supplied), the optional CT-17 is
not required.
CI-V connection D
The transceiver’s operating frequency, mode, VFO
and memory selection, can be remotely controlled
using the PC.
Choose the connection method from the following:
• A USB cable (A-B type, user supplied)
The required USB driver and driver install guide can be
downloaded from Icom web site.
Access to “http://www.icom.co.jp/world,” then click
“Support,” “Firmware Updates / Software downloads” in
sequence.
The download procedure on the web page may be
changed without notice.
• The optional CT-17 (CI-V level converter)
Connects to a PC with an RS-232C port.
Preparing D
The Icom Communications Interface-V (CI-V) is used
for remote control.
To control the transceiver, first set its address, data
communication speed, and transceive function. These
settings are set in Set mode. (p. 142)
