DV MODE PROGRAMMING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Area 1
Zone A
Repeater 1
Area 2
Repeater 2
Area 3
Repeater 3
Area 4
Repeater 4
Zone B
Area 7
Repeater 6
Area 6
Repeater 7
Area 8
Repeater 8
Area 5
Repeater 5
Internet
Network
Internet
Network
(Gateway)
(Gateway)

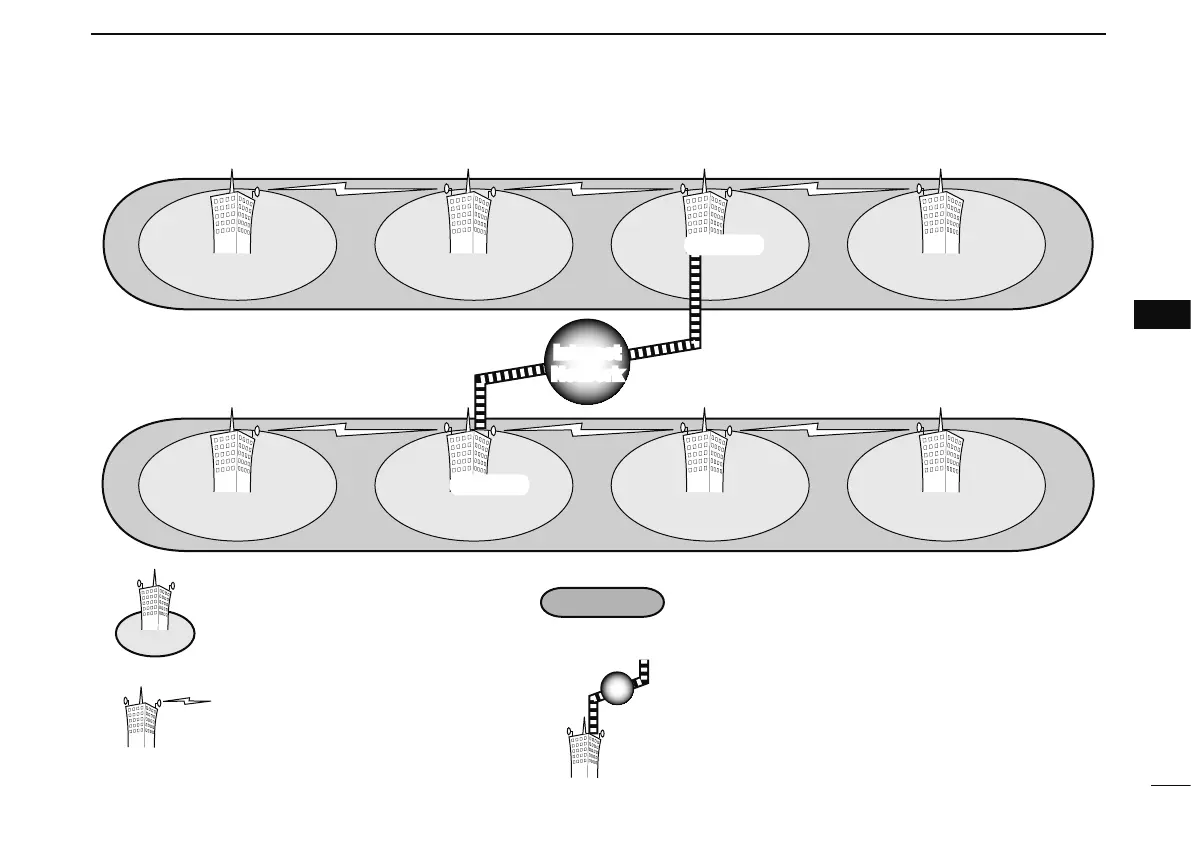

Area:
The Area is the communication range
that is covered by a single repeater.
The repeater is called an area repeater
in the D-STAR system.
Zone:
The Zone is composed of several areas, that are linked
by a 10 GHz microwave link.
The areas 1 to 4 and 5 to 8 make up a zone in the
example above.
Link repeater:
The microwave (10 GHz) link repeater
provides to linking with another repeater
site (Area) for zone construction.
Gateway repeater:
Gateway repeaters provide communications between
different zones via the internet.
Repeaters 3 and 6 are gateway repeaters in the
example above.
