Section 5 - Commissioning
COMMISSIONING
73
Installation and Maintenance
5.8.9.9 For serviceman, Test run

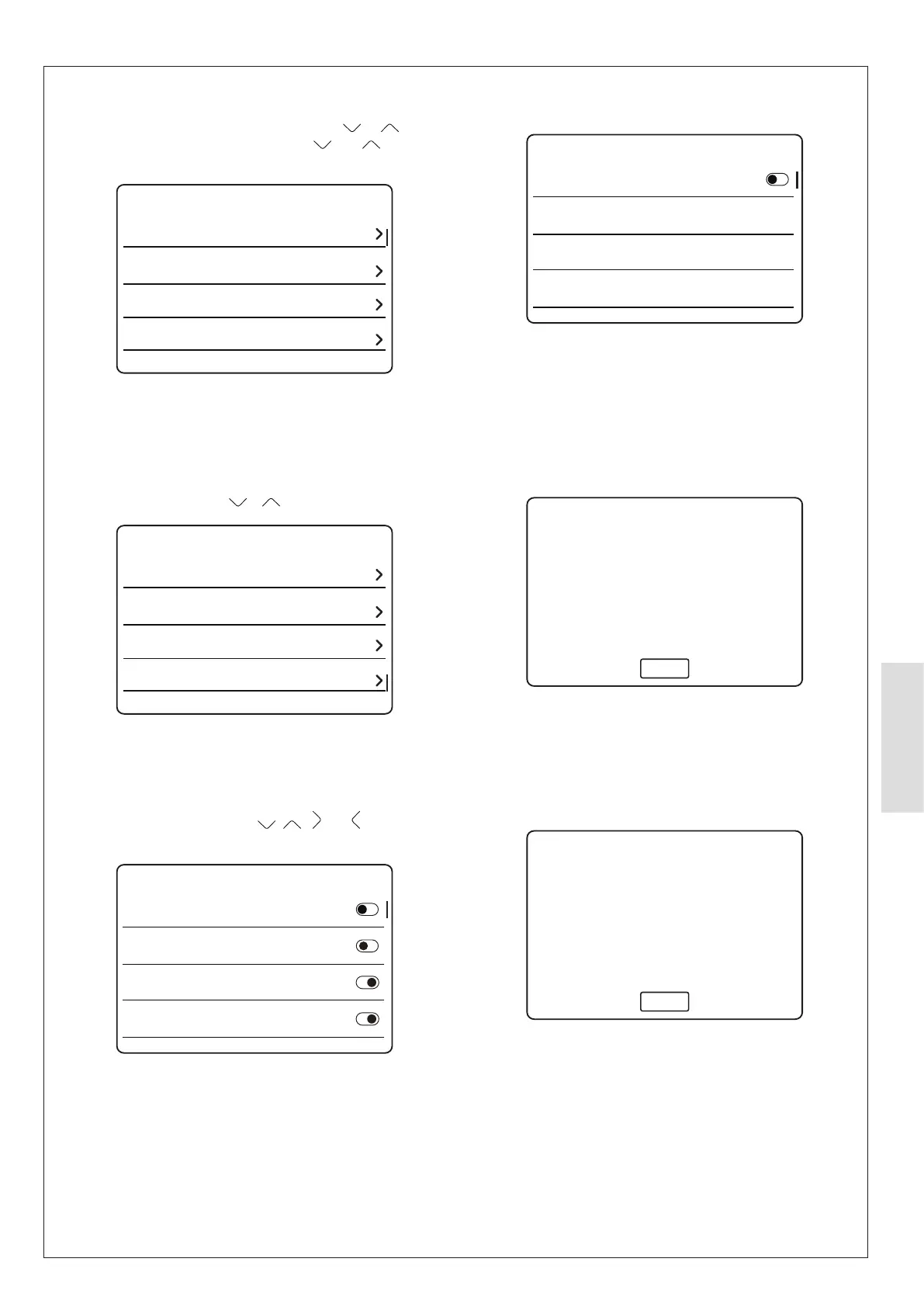

To set a parameter scroll through settings, use or . Press
O to select the parameter, and then press and to change
the parameter.
Point check
Air purge
Circulated pump running
Cooling running
Test run
- For Point check settings, refer to 5.8.9.9.1
- For Air purge settings, refer to 5.8.9.9.2
- For Circulated pump running settings, refer to 5.8.9.9.3
- Cooling running is not available on this product. DO NOT
select COOLING RUNNING.
Circulated pump running
Cooling running
Heating running
DHW running
Test run
- For Heating running settings, refer to 5.8.9.9.4
- For DHW running settings, refer to 5.8.9.9.5
5.8.9.9.1 For serviceman, Test run, Point check
To scroll through the options use , , and . Select O to
set the applicable setting to ON or OFF.
Point check
SV2
SV3
Pump_1
Pump_0
- SV2 = not applicable to this product
- SV3 = not applicable to this product
- Pump_I = Primary Circulation Pump
- Pump_O = CH Zone 1 Pump
(the defaults are all OFF)
5.8.9.9.2 For serviceman, Test run, Air purge
Press O to switch Air purge ON or OFF.
Air
Air purge
Air purge Pump_I output
70%
20min
1.70m³/h
Air purge running time
Air purge water flow
purge
The Air Purge function runs the pump to extract air from
the system.
Air purge Pump_I output default: 70 %
Air purge running time default: 20min
5.8.9.9.3 For serviceman, Test run, Circulated pump running
Press O to return to the menu.
Circulated pump running is on.
OK
Water flow X.XXm³/h
Circulated pump running
This shows whether the primary circulation pump in the
through it is.
5.8.9.9.4 For serviceman, Test run, Heating running
Press O to return to the menu.
Circulated pump running is on.
OK
Water flow X.XXm³/h
Heating running
This shows whether CH is operating and whether the primary
circulation pump in the outdoor unit is ON or OFF and what the
