4.2 Basic functions list - GF
Basic functions represent simple logical elements of Bool-
ean algebra.
You can invert the inputs of individual basic functions, i.e. the
circuit program inverts a logical “1” at a relevant input to a
logical “0”; if “0” is set at the input, the program sets a logical
“1”. A programming example is found in Chapter
3.6.3.

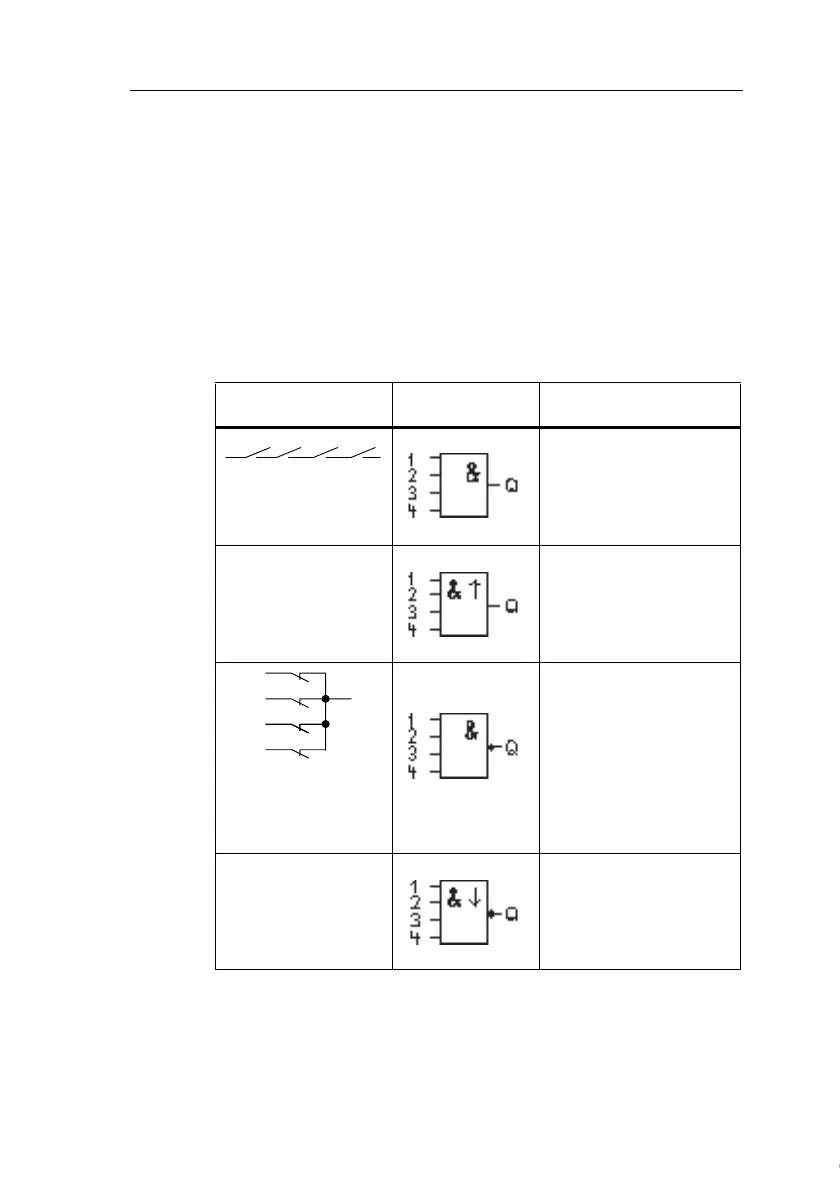

The GF list contains the basic function blocks you can use
for your circuit program. The following basic functions are
available:
View in the circuit
diagram
View in IDEC
SmartRelay
Name of the basic
function
Series circuit with
normally open con-
tact
AND
(see page 114)
AND with Edge Detec-
tion
(see page 115)
Parallel circuit with
normally closed con-
tact
NAND
(not AND)
(see page 116)
NAND with Edge Detec-
tion
(see page 117)
