2.2.1 DIN rail mounting
Mounting

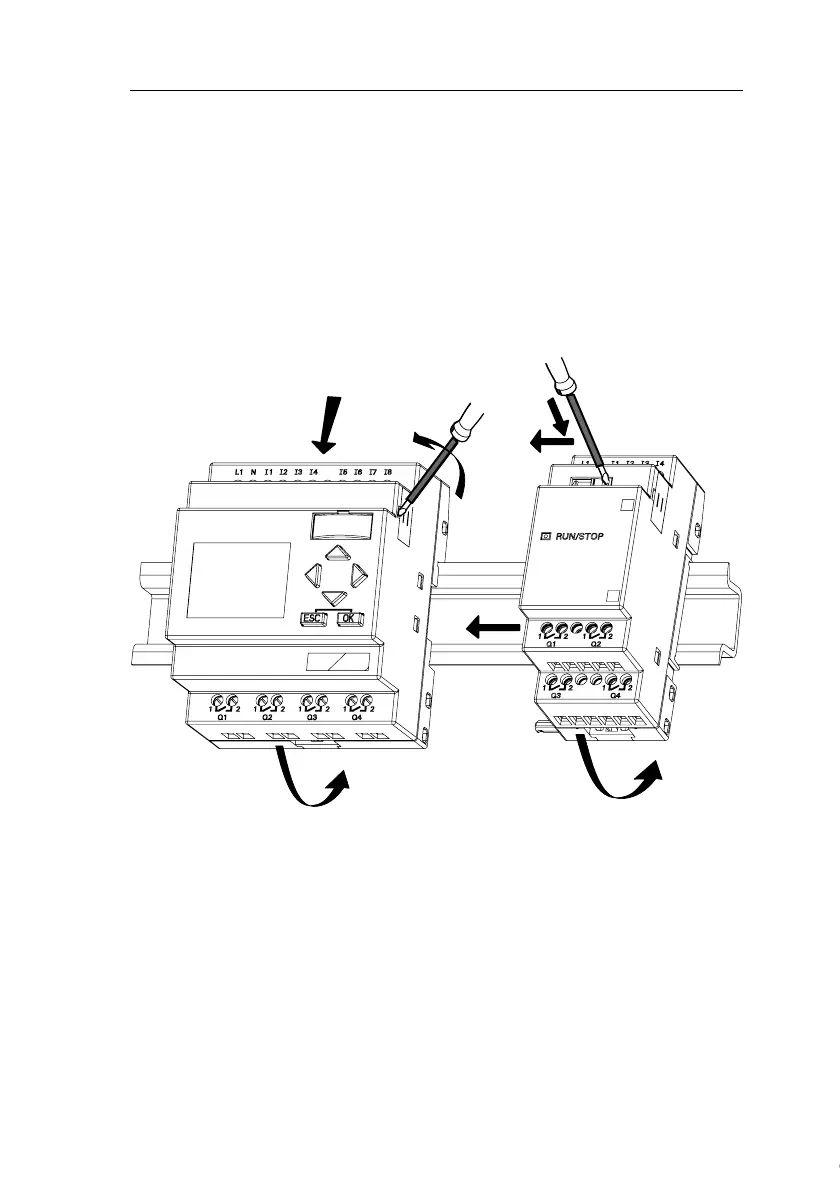

How to mount an IDEC SmartRelay Base and a digital mod-
ule onto a DIN rail:
IDEC SmartRelay Base:
1. Hook the IDEC SmartRelay Base module onto the rail
and
2. then push down the lower end to snap it on. The mount-
ing interlock at the rear must engage.
IDEC SmartRelay digital module:
3. On the right side of the IDEC SmartRelay Base/IDEC
SmartRelay expansion module, remove the connector
cap.
4. Place the digital module onto the DIN rail on the
right-hand side of the IDEC SmartRelay Base.
5. Slide the digital module towards the left until it contacts
the IDEC SmartRelay Base.
1
2
3
4
5
6
