8.5.1 Requirements for a gate control system
• Every gate is opened and closed by means of a cord-op-
erated switch. The gate is will be fully opened or fully
closed.
• All gate can be opened and closed locally by means of
pushbuttons.
• The gate can be opened and closed at the gatehouse by
means of the bus system. The GATE OPEN or GATE
CLOSED status is indicated.
• An indicator lamp is switched on five seconds before the
gate starts moving and when the gate is in motion.
• A safety pressure bar prevents harm to persons and ob-
jects from getting trapped or damaged when the gate
closes.

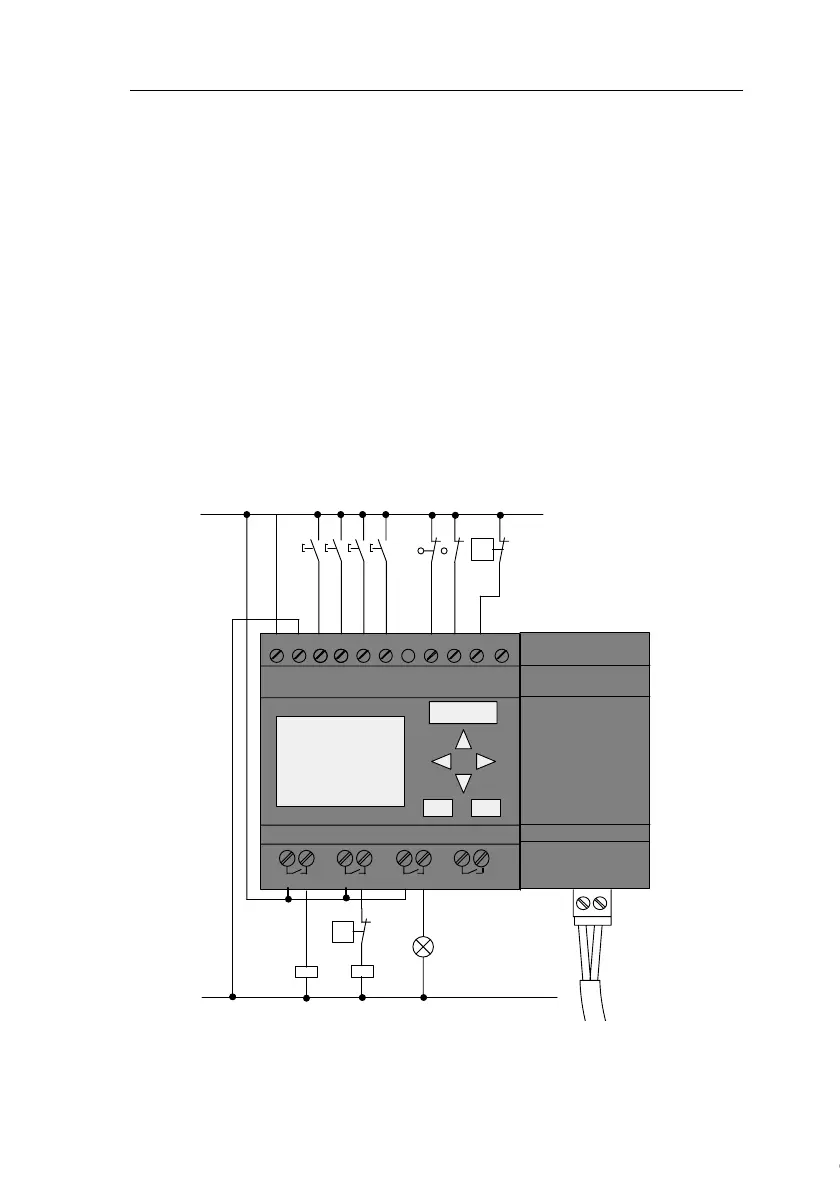

Wiring of the gate control system with FL1D-H12RCC and CM AS-
Interface
N
L1 N I3 I4 I5 I6 I7 I8
K1
K2
L1
S0 S1 S2 S3 S4 S5
S6
p
>
S6
p
>
I2I1
Q1 Q2 Q3 Q4
1 2 1 2 1 2 1 2
Gate Gate Indicator lamp
AS-Interface
