IDEC SmartRelay FL1D Series User Manual

Programming IDEC SmartRelay
IDEC SmartRelay Manual 66
3.6 Writing and starting the circuit program
After you have designed a circuit, you want to write it to your
IDEC SmartRelay. The small example below shows how to
do this.
3.6.1 Select programming mode

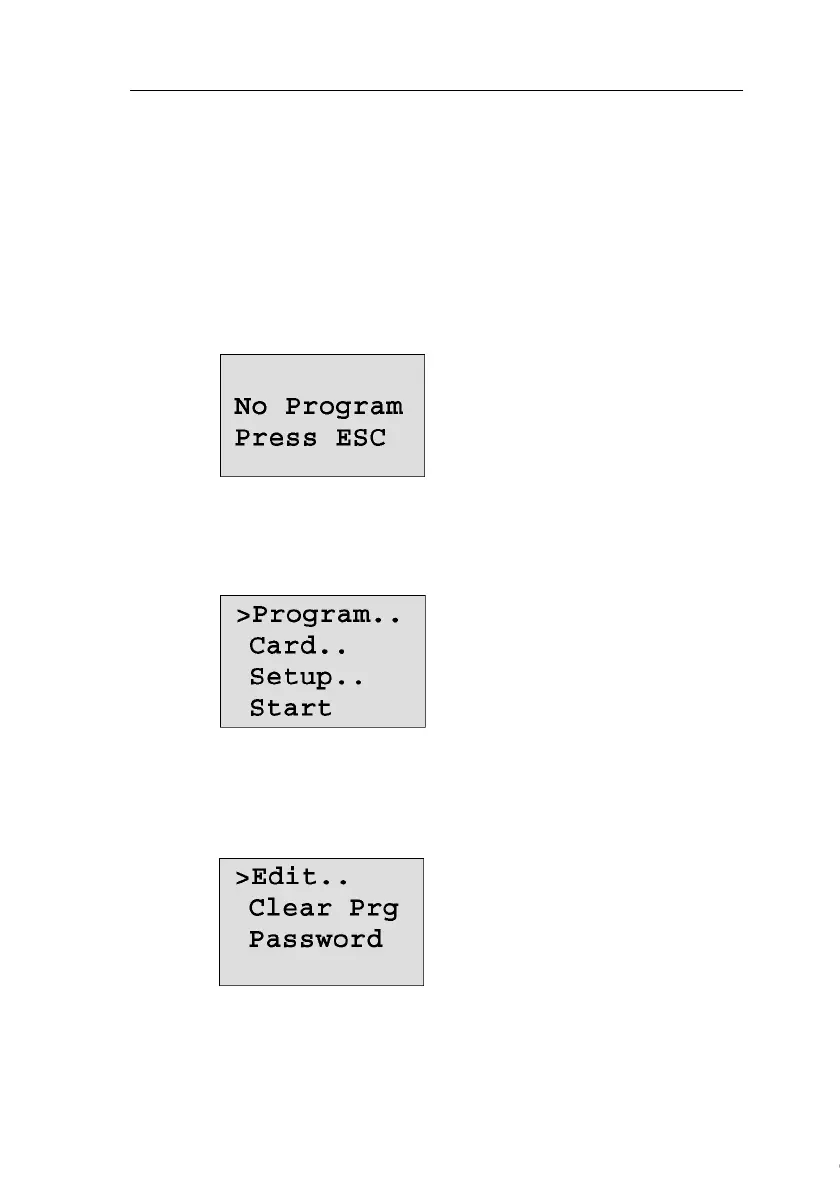

You have connected IDEC SmartRelay to the power supply
and switched it on. The display now shows you the message:
Switch IDEC SmartRelay to programming mode by pressing
ESC. This will take you to the main menu of IDEC
SmartRelay:
IDEC SmartRelay’s main menu
The first character in the first line is the ">" cursor. Press ▲
and ▼ to move the ">" cursor up and down. Move it to "Pro-
gram.." and confirm with OK. IDEC SmartRelay opens the
programming menu.
IDEC SmartRelay’s programming menu
