Programming IDEC SmartRelay
67
IDEC SmartRelay Manual
Here you can also move the ">" cursor by pressing ▲ and ▼.
Move the ">" cursor to "Edit.." (for editing, i.e. input) and con
-
firm with OK.

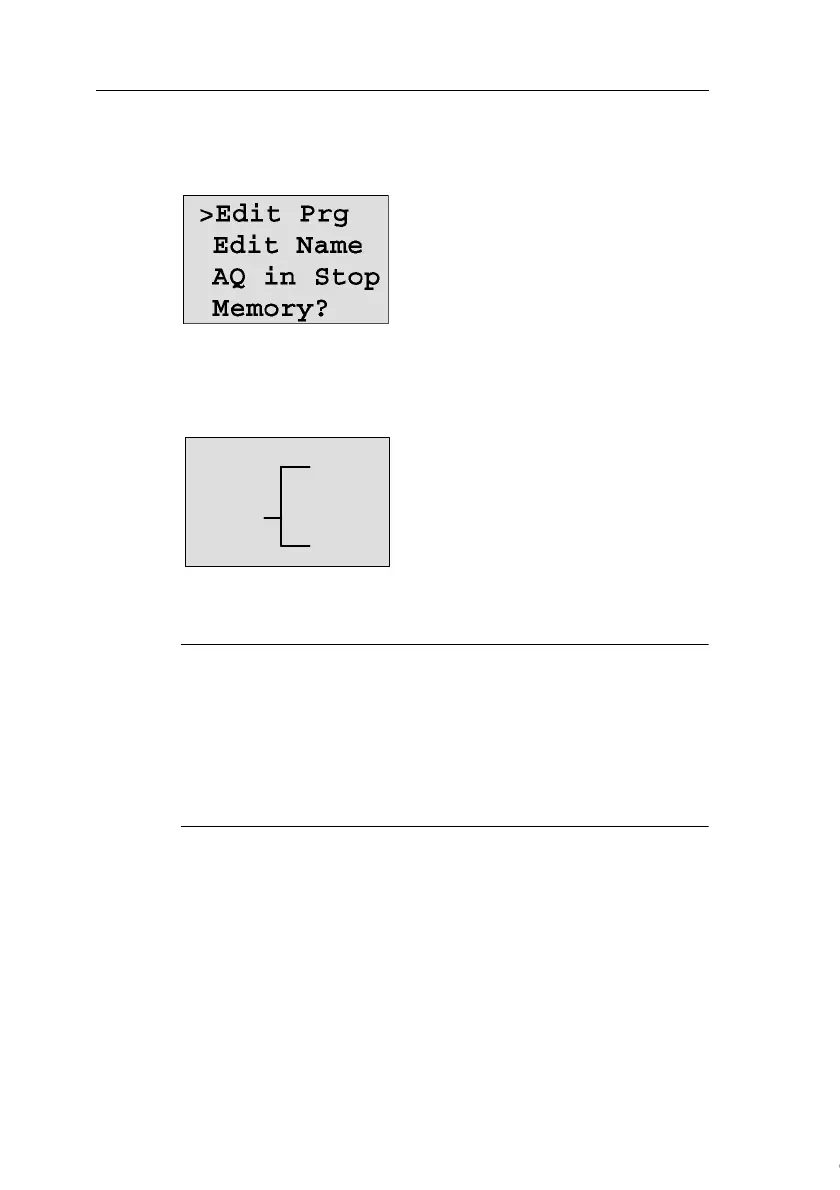

The Edit menu of IDEC SmartRelay
Move the ">" cursor to "Edit Prg" (for editing the circuit pro-
gram) and confirm with OK. IDEC SmartRelay now shows
you the first output:
Q1
The first output of IDEC SmartRelay
You are now in programming mode. Press ▲ and ▼ to select
the other outputs. Now start to edit your circuit program.
Note
Because we have not yet saved a password for the circuit program
in IDEC SmartRelay, you can directly enter editing mode. When
you select “Edit” after you have saved a password-protected circuit
program, you are prompted to enter a password and to confirm it
with OK. You can only edit the program after you have entered the
correct password (see Chapter 3.6.5.).
