IDEC SmartRelay FL1D Series User Manual

Programming IDEC SmartRelay
91
IDEC SmartRelay Manual
3.6.8 Deleting a block

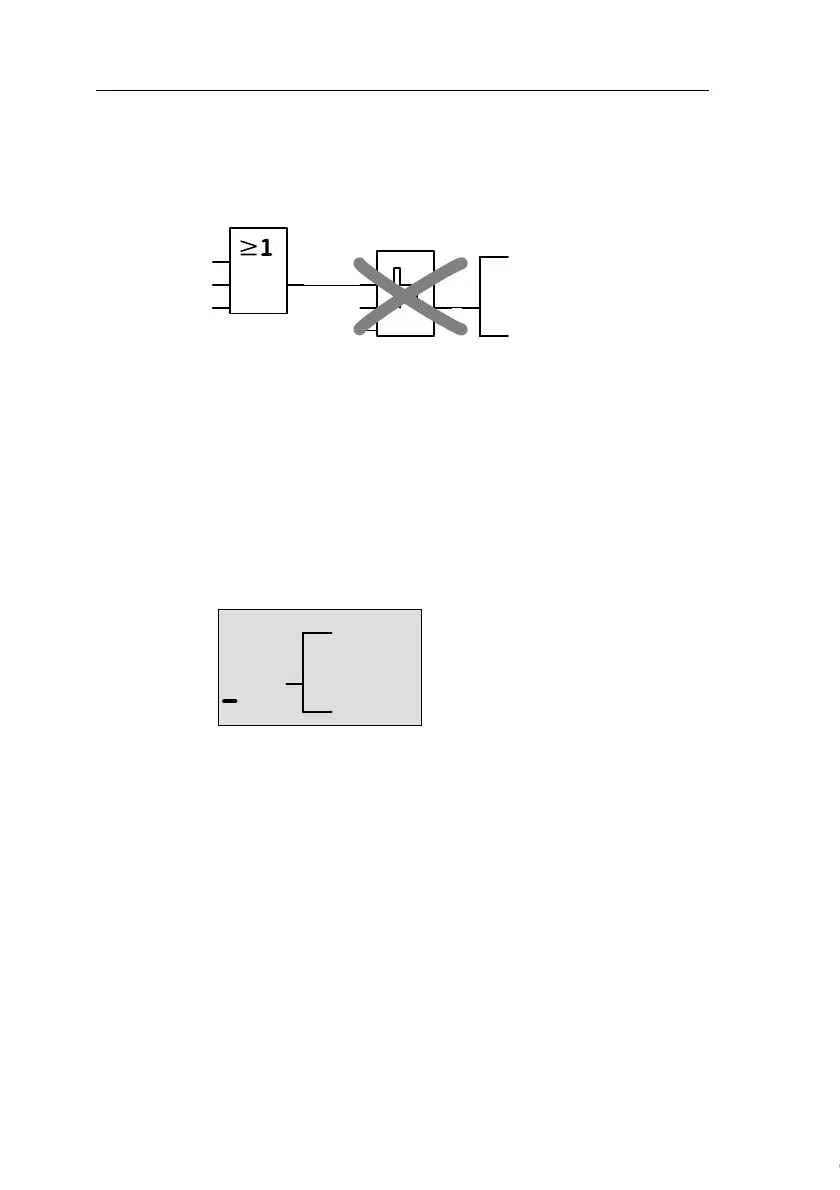

Let us assume you want to delete the block B2 from your cir-
cuit program and connect B1 directly to Q1.
Q1
I1
I2
x
x
Par
B1
B2
Proceed as follows:
1. Switch the IDEC SmartRelay to programming mode
(as a reminder, refer to page 63).
2. Select ‘Edit’: Press ▲ or ▼
3. Confirm ‘Edit’: Press OK
(If required, enter your password and confirm with OK).
4. Select ‘Edit Prg’: Press ▲ or ▼
5. Confirm ‘Edit Prg’: Press OK
6. To move the cursor to the input of Q1, i.e. to B2, press :
7. Confirm with OK.
8. Now replace block B2 with block B1 at output Q1. The
procedure:
- Select the BN list: Press ▲ or ▼
- Accept the BN list: Press OK
-Select 'B1': Press ▲ or ▼
- Apply 'B1': Press OK
Result: Block B2 is deleted, because it is no longer used in
the circuit. Block B1 has replaced B2 directly at the output.
▲
B2 Q1
