IDEC SmartRelay installation and wiring
IDEC SmartRelay Manual 40
2.3.3 Connecting outputs
FL1D-H12RCA / FL1D-B12RCA / FL1D-H12RCC / FL1D-B12RCC /
FL1D-H12RCE / FL1D-B12RCE
These units are equipped with relay outputs. The potential of
the relay contacts is isolated from the power supply and the
inputs.
Requirements for relay outputs
You can connect various loads to the outputs, e.g. lamps, flu-
orescent lamps, motors, contactor relays etc. For informa-
tion on the properties required for the loads connected to the
these units, refer to Appendix
A.
Connecting

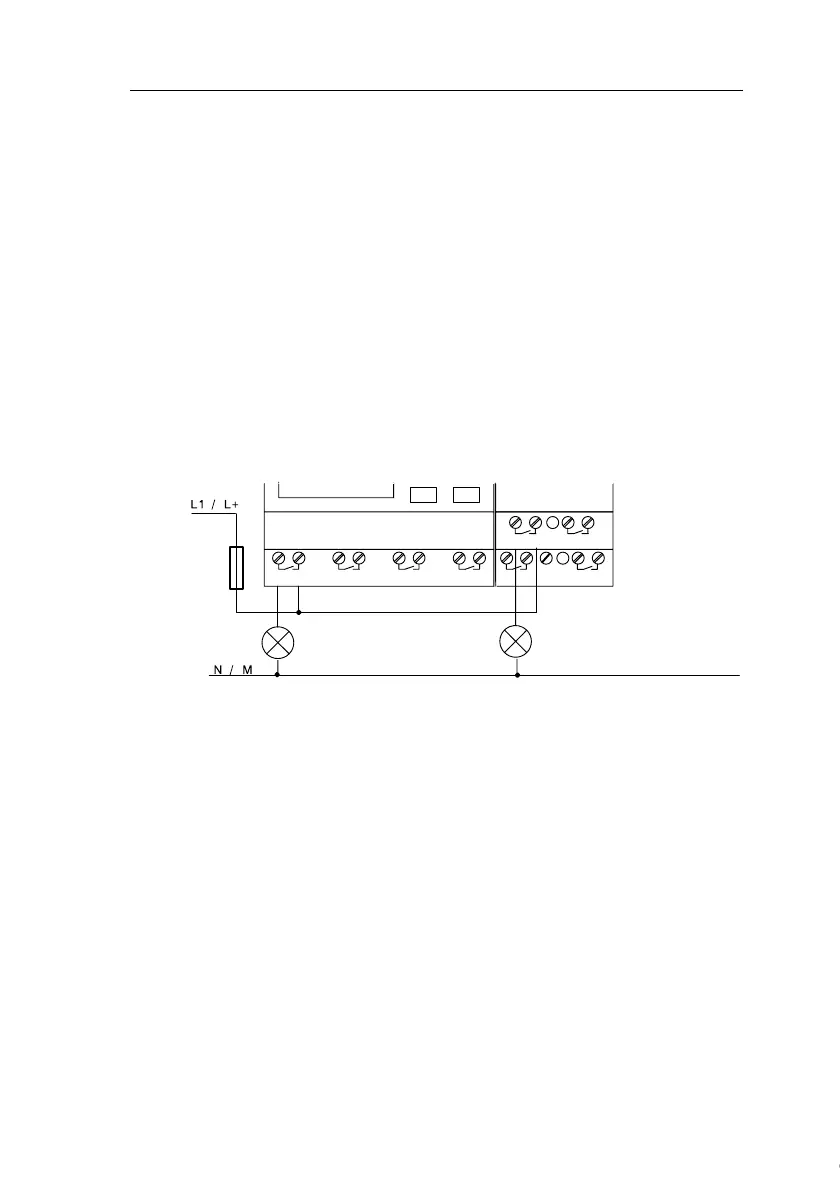

This is how you connect the load:
1 2
Q1 Q2
1 2
Q5 Q6
1 2
1 2
load
load
Protection with automatic circuit-breaker, max. 16 A, characteristics
B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)
