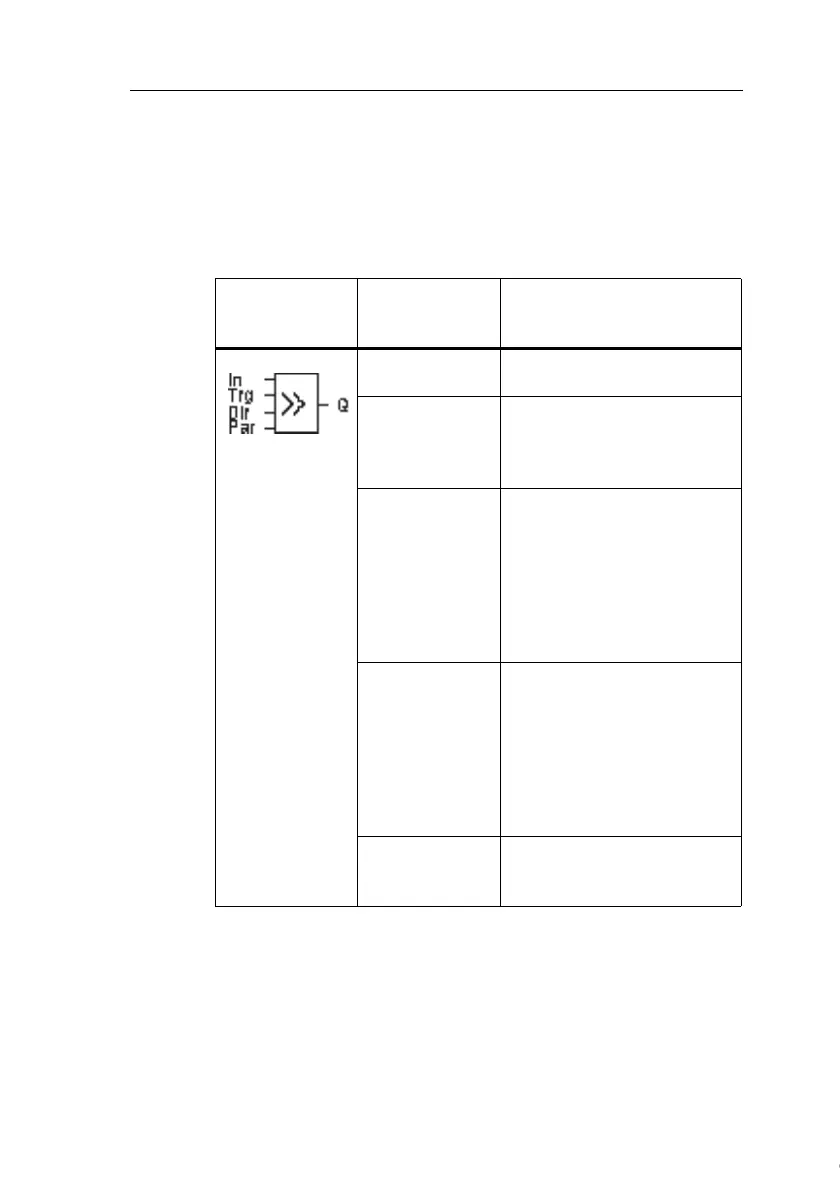

4.4.25 Shift register
Short description
You can use the shift register function to read the value of an
input and to shift its bits left or right. The output value corre
-
sponds with the configured shift register bit. The shifting di-
rection can be changed at a special input.
Parameter
Symbol in
IDEC
SmartRelay
Wiring Description
Input In Input read at the start of the
function.
Input Trg A positive edge (0 to 1 transi-
tion) at input Trg (Trigger)
starts the special function. 1
to 0 transitions are irrelevant.
Input Dir The signal at input Dir deter-
mines the shifting direction
for the shift register bits
S1...S8 an:
Dir = 0: Shift up (S1 >> S8)
Dir = 1: Shift down (S8 >>
S1)
Shift register bit that deter-
mines the value at output Q.
Possible settings:
S1 ... S8
Retentivity:
/ = No retentivity
R = The status is retentive.
Output Q The output value corre-
sponds with the configured
shift register bit.
