3.6.2 The first circuit program
Let us now take a look at the following parallel circuit consist-
ing of two switches.

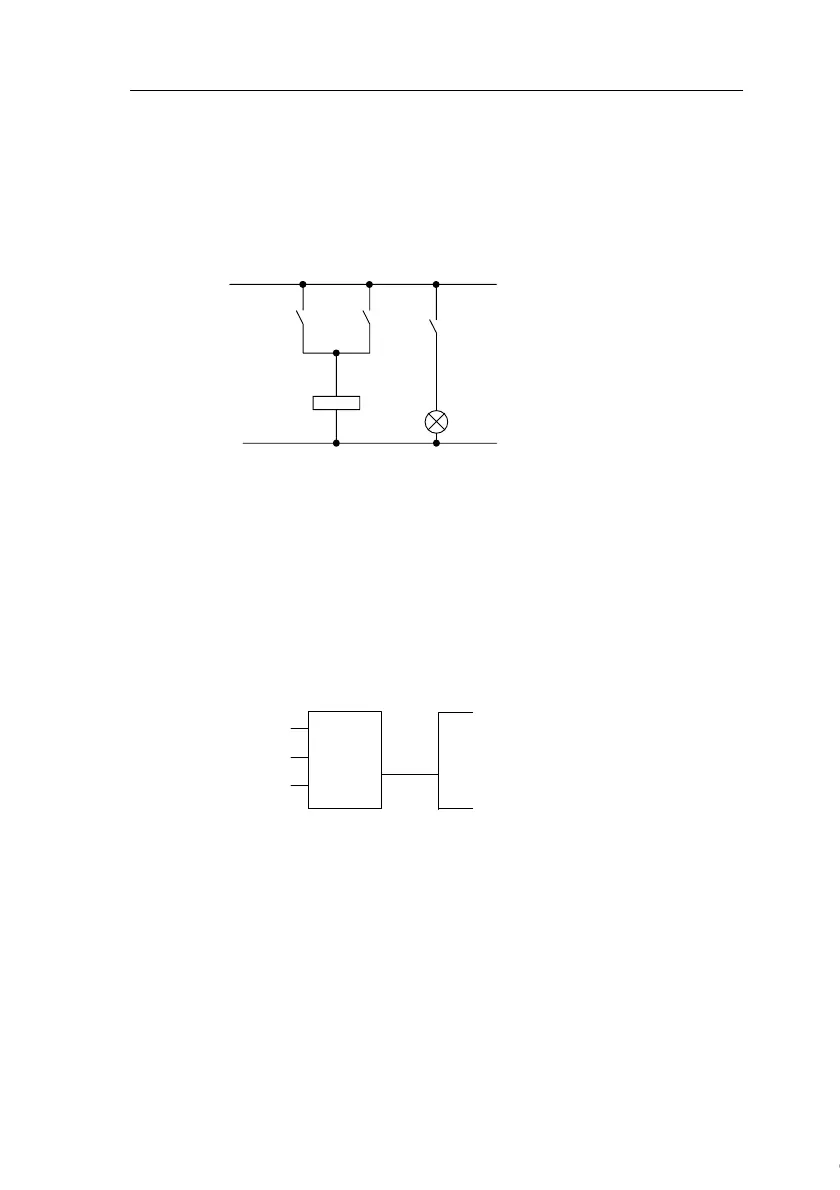

Circuit diagram
The corresponding circuit diagram:
K1
S1
K1
S2
E1
The load is switched on with
S1 OR S2. IDEC SmartRelay
interprets this parallel circuit as
an ‘OR’ logic, because S1 OR
S2 switches on the output.
Translated into a IDEC SmartRelay circuit program this
means: Relay K1 is (at output Q1) is controlled by means of
an OR block.
Circuit program
S1 is connected to the I1 and S2 to the I2 input connector of
the OR block.
The corresponding layout of the circuit program in IDEC
SmartRelay:
I1
I2
x
Q1
≥ 1
