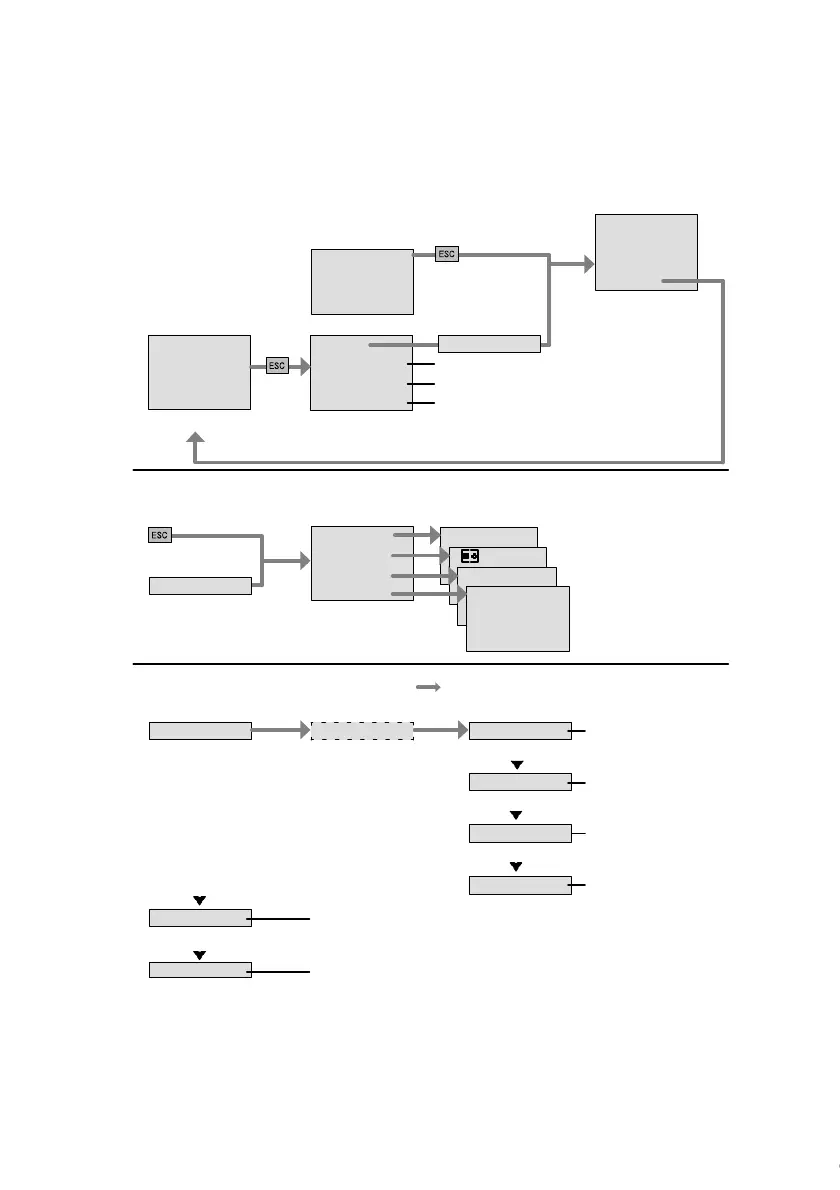

D IDEC SmartRelay menu structure
>Stop
Set Param
Set..
Prg Name
>Program..
Card..
Setup..
Start
Mo 09:00
2005-01-27
Press ESC
No Program
>Program..
Card..
Setup..
Start
>Yes
>Edit..
> –>Card
>Clock
>Stop/>Yes
Mo 09:00
2005-01-27
>Edit..
>Clear Prg
>Password
>Edit PrgPassword?
>Edit Name
>AQ in Stop
>Memory?
Menu overview
No Program
Circuit program is
busy (RUN)
See “Start menu”
Parameter assign-
ment menu
Parameter setting (Chapter 5.1.1 cont.)
Default values setting (Chapter 5.2 cont.)
Display of the program name
See “Main menu”
Main menu (ESC / >Stop)
See “Programming menu”
See “Transfer menu”
See “Setup menu”
See “Start menu”
Programming menu (ESC / >Stop >Program)
Editing the program
(Chapter 3.6 cont.)
Deleting the program
(Chapter 3.6.12)
Input/change of pass-
word (Chapter 3.6.5)
Editing the program
name (Chapter 3.6.4)
Selecting analog
output values
(Chapter 3.6.11)
Show available
memory space
(Chapter 3.7)
