IDEC SmartRelay FL1D Series User Manual

IDEC SmartRelay functions
213
IDEC SmartRelay Manual
4.4.26 Analog multiplexer
Short description
This special function outputs one of four predefined analog
values or 0 at the analog output.

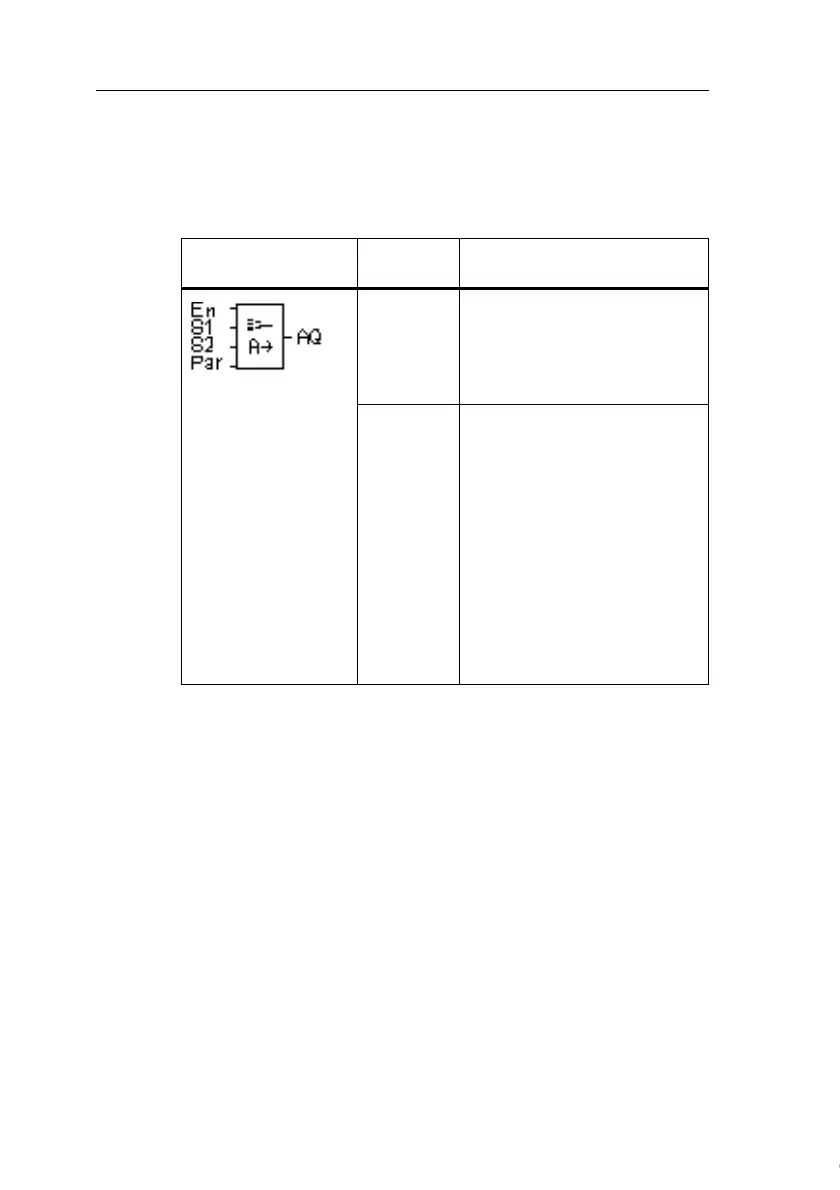

Symbol in
IDEC SmartRelay
Wiring Description
Input En A change in status from 0 to 1
at input En (Enable) switches
a parameterized analog value
to the output AQ, depending
on the value of S1 and S2.
Inputs S1
and S2
S1 and S2 (selectors) for
selecting the analog value to
be issued.
• S1 = 0 and S2 = 0:
Value 1 is issued
• S1 = 0 and S2 = 1:
Value 2 is issued
• S1 = 1 and S2 = 0:
Value 3 is issued
• S1 = 1 and S2 = 1:
Value 4 is issued
