IDEC SmartRelay Manual
8.2.4 Special features and expansion options
Options for increasing comfort and user friendliness are, for
example:
• You can connect an additional control switch with the po-
sitions: Open - Automatic - Closed (O-A-C)
• You can connect a buzzer to an output of the IDEC Smar-
tRelay to warn of the closing of the door.
• You can enable opening of the door time and direc-
tion-dependent, i.e. opening only during business hours,
and opening only from the inside after closing time.
8.2.5 Extended solution with FL1D-H12RCC

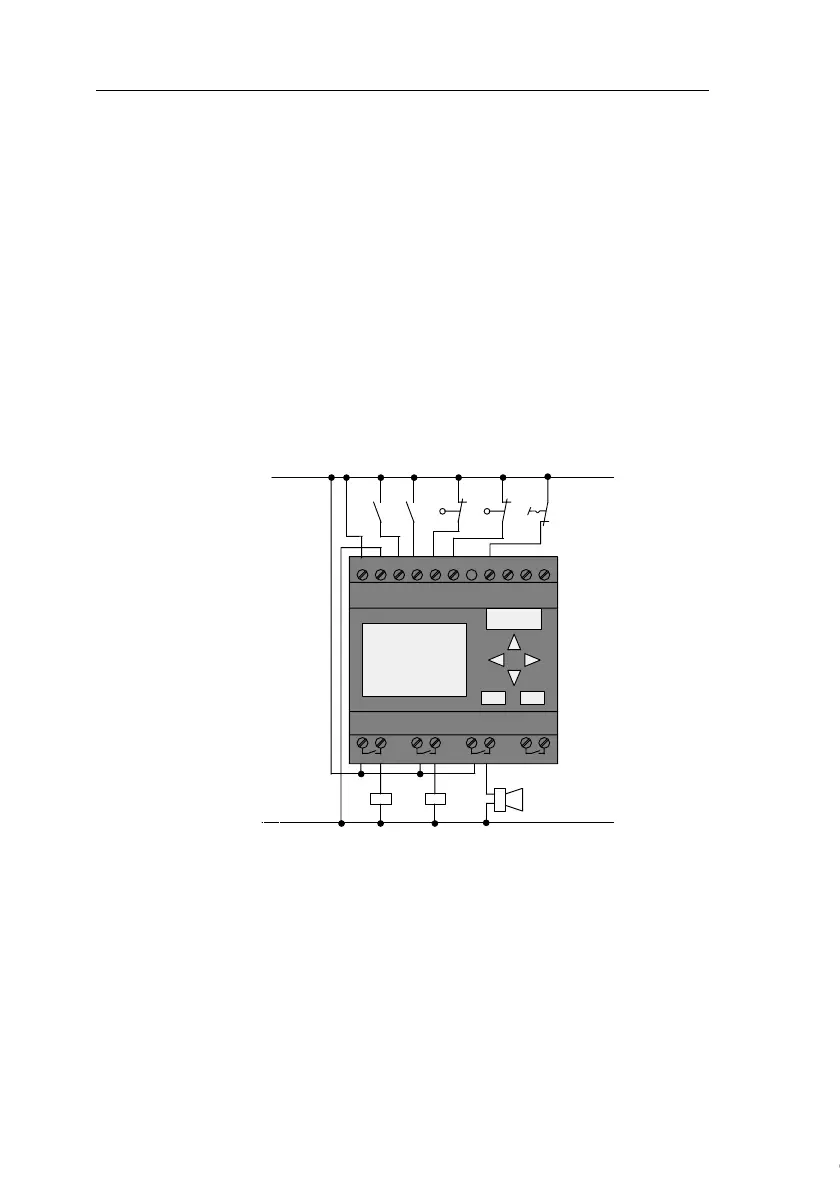

Wiring the IDEC SmartRelay extended solution
L1N I4 I5I6I7I8
K1 K2
B1 B2 S2S1
L1
N
S3
H1
Q1 Q2 Q3 Q4
I1 I2 I3
1 2 1 2 1 2 1 2
Open Close Buzzer
