IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual

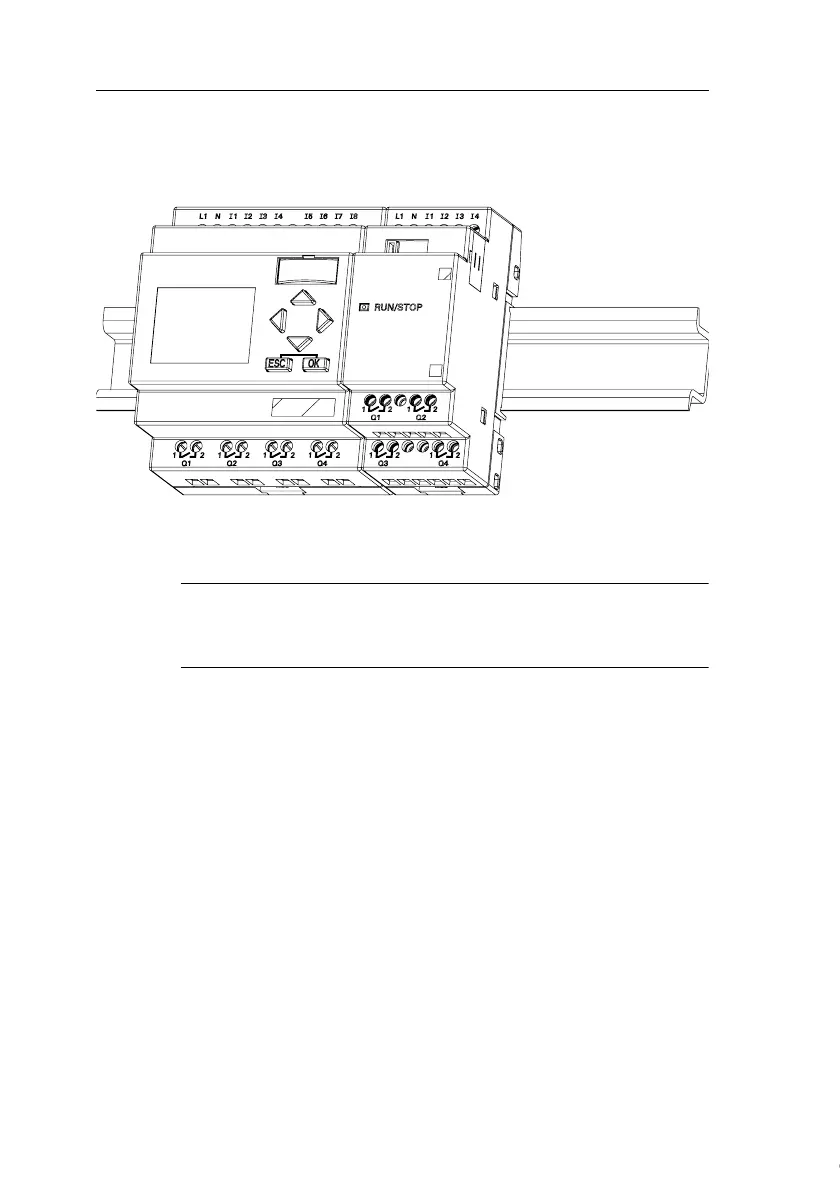

6. Using a screwdriver, push the interlock to the left. In its

end position the slide interlock engages in the IDEC

SmartRelay Base.

Repeat steps 3 through 6 to mount further expansion mod-

ules.

Note

The expansion interface on the last expansion module must

be covered.
