Removing the memory cartridge (card)

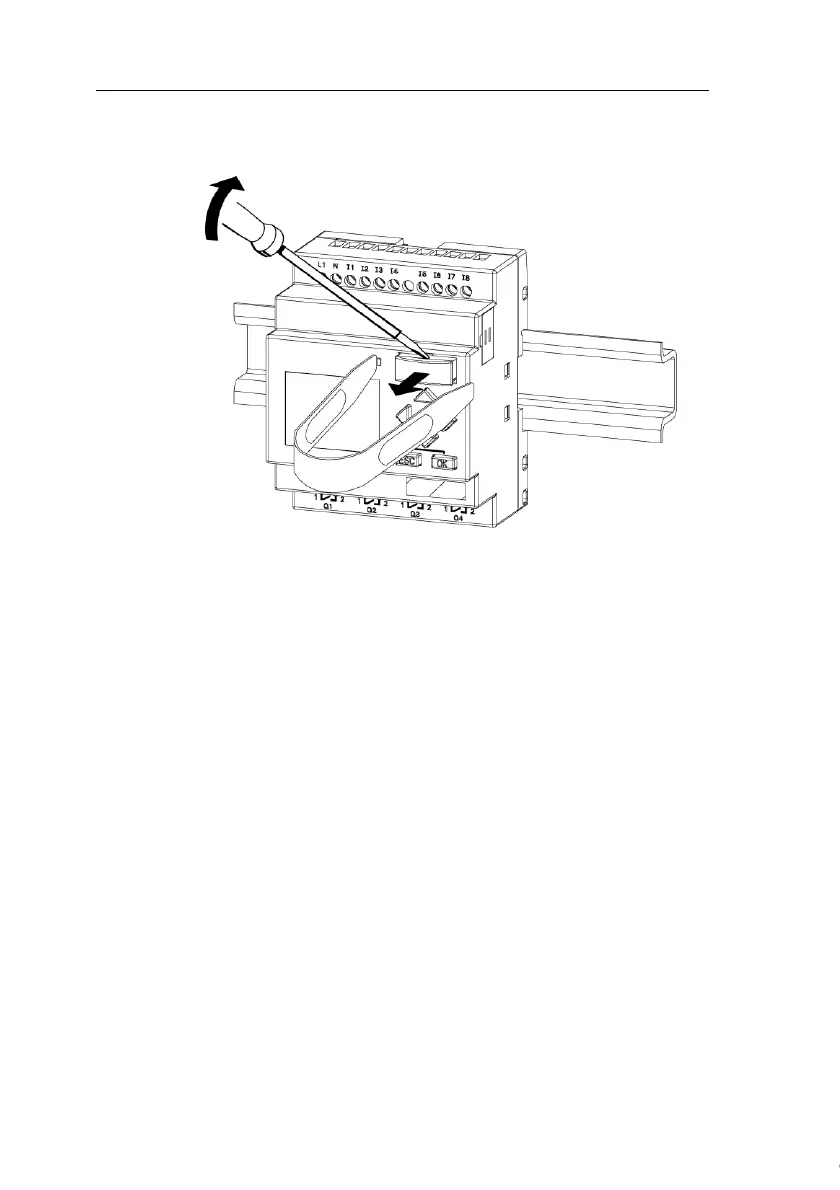

To remove the memory cartridge (card):
1. Carefully insert a screwdriver into the slot at the upper
end of the memory cartridge, and ease it out of the slot a
little.
2. Hold the memory cartridge at both sides using the mem-
ory cartridge removal tool (MT-101). and pull the memo-
ry cartridge straight out.
Inserting a memory cartridge (card)
The entry of the memory cartridge (card) slot is chamfered
on its bottom right. The edge of the memory cartridge (card)
is chamfered accordingly. This encoding prevents you from
inserting the memory cartridge (card) the wrong way round.
Insert the memory cartridge (card) into the slot and push it in
until it engages.
