IDEC SmartRelay FL1D Series User Manual

Applications
277
IDEC SmartRelay Manual
Components used
• K1 contactor relay
• K2 contactor relay
•S0 (normally closed contact) STOP pushbutton
•S1 (normally open contact) OPEN pushbutton
•S2 (normally open contact) CLOSE pushbutton
•S3 (normally closed contact) Position sensor OPEN
•S4 (normally closed contact) Position sensor CLOSED
•S5 (normally closed contact) Safety bar

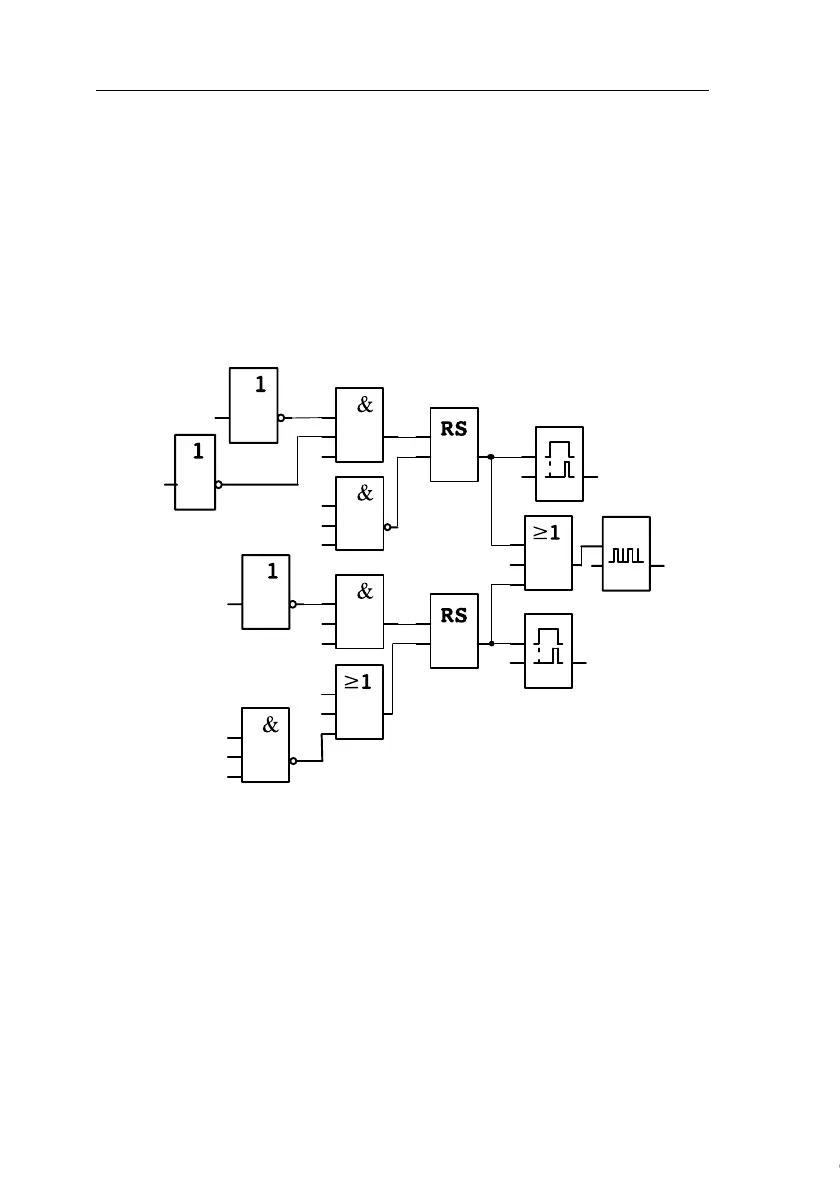

Block diagram of the IDEC SmartRelay solution
The OPEN or CLOSE pushbuttons initiate the gate motion,
provided it is not already moving in the other direction. The
gate is stopped by means of the STOP pushbutton or the rel
-
evant limit switch. A safety bar furthermore interrupts the
closing motion of the gate.
T=
5 s
T=
5 s
x
x
x
x
Q1
Q3
Q2
I3
I4
I3
I6
I5
I1
I2
Q2
Q1
T
H
=
T
L
=2 s
Inv=lo
I2
I1
Start push-
button
CLOSED
Start push-
button OPEN
STOP push-
button
Gate is open
CLOSE push-
button
CLOSE pushbutton
OPEN pushbutton
STOP pushbutton
Safety bar
Gate is closed
Open
Signal
lamp
Close
