IDEC SmartRelay installation and wiring
25
IDEC SmartRelay Manual

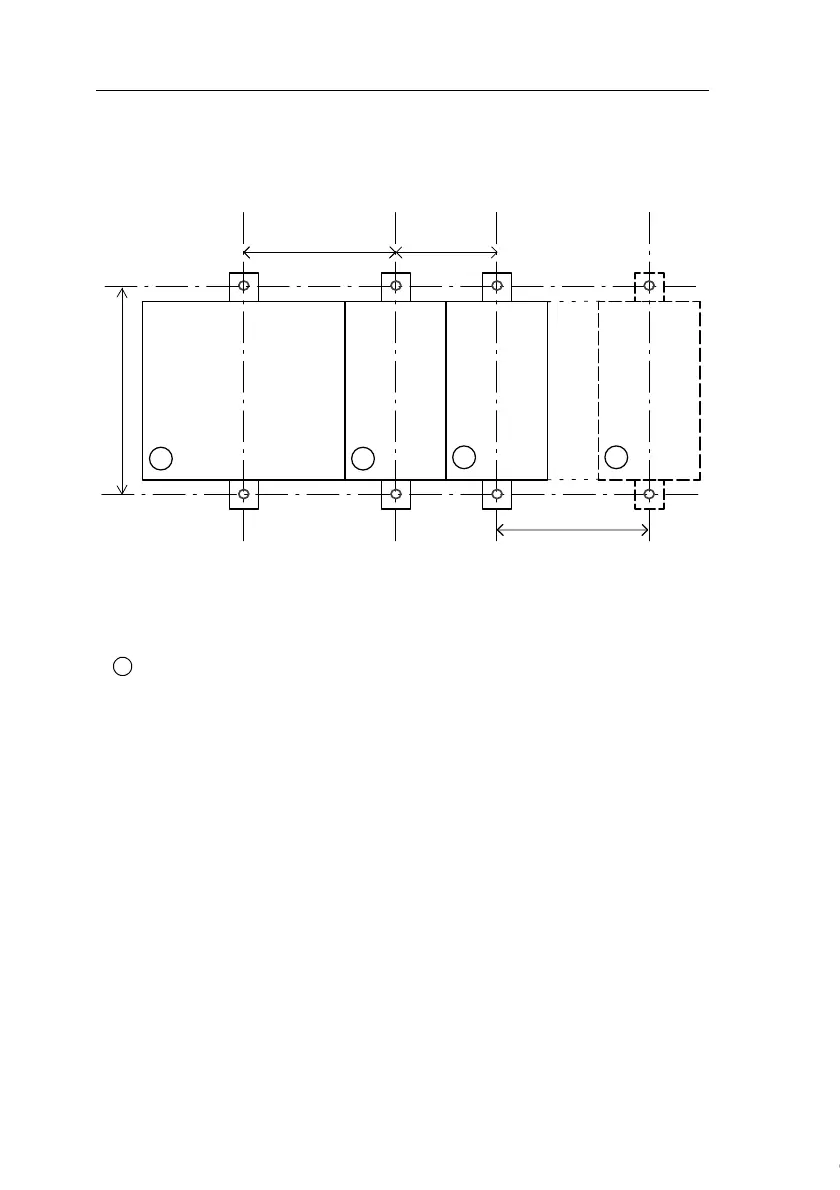

Drilling template for wall-mounting
Before you can wall-mount the IDEC SmartRelay, you need
to drill holes using the template shown below.
53.5 +/– 0.2 35.5 +/– 0.2
n x 35.5 +/– 0.2
98 +/– 0.3
1
2
2 2
All dimensions in mm
Bore hole for
φ
M4 screw
Tightening torque 0.8 to 1.2 Nm
1 IDEC SmartRelay Base
2 IDEC SmartRelay expansion module
