Programming IDEC SmartRelay
IDEC SmartRelay Manual 70

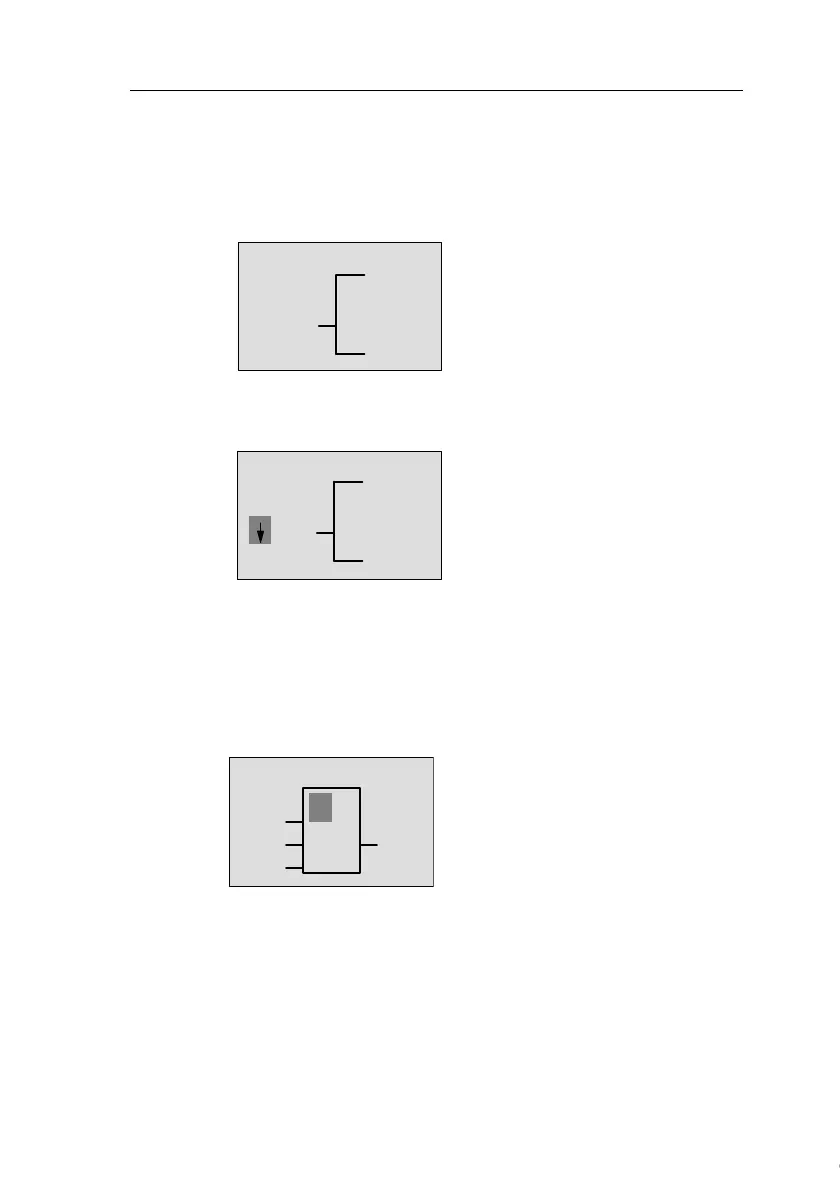

You will see an underscore below the Q in Q1, which is the
cursor. The cursor indicates your current position in the cir
-
cuit program. You can move the cursor by pressing the ▲,
▼,
and
▲
keys. Now press the
key. The cursor moves
to the left.
Q1
-
The cursor indicates your current
position in the circuit program.
At this point you enter only the first (OR) block. Press OK to
select editing mode.
Q1
Co
The cursor is displayed as a solid
square: You can now select a con-
nector or a block
The cursor no longer appears in the form of an underscore;
but instead as a flashing solid square. IDEC SmartRelay of
-
fers you various options here.
Select GF (basic functions) by pressing the ▼ key until GF
appears, and confirm with OK. IDEC SmartRelay now shows
the first block from the list of basic functions:
&
B1
Q1
The AND is the first block of the basic
functions list.
The solid square cursor prompts you
to select a block.
