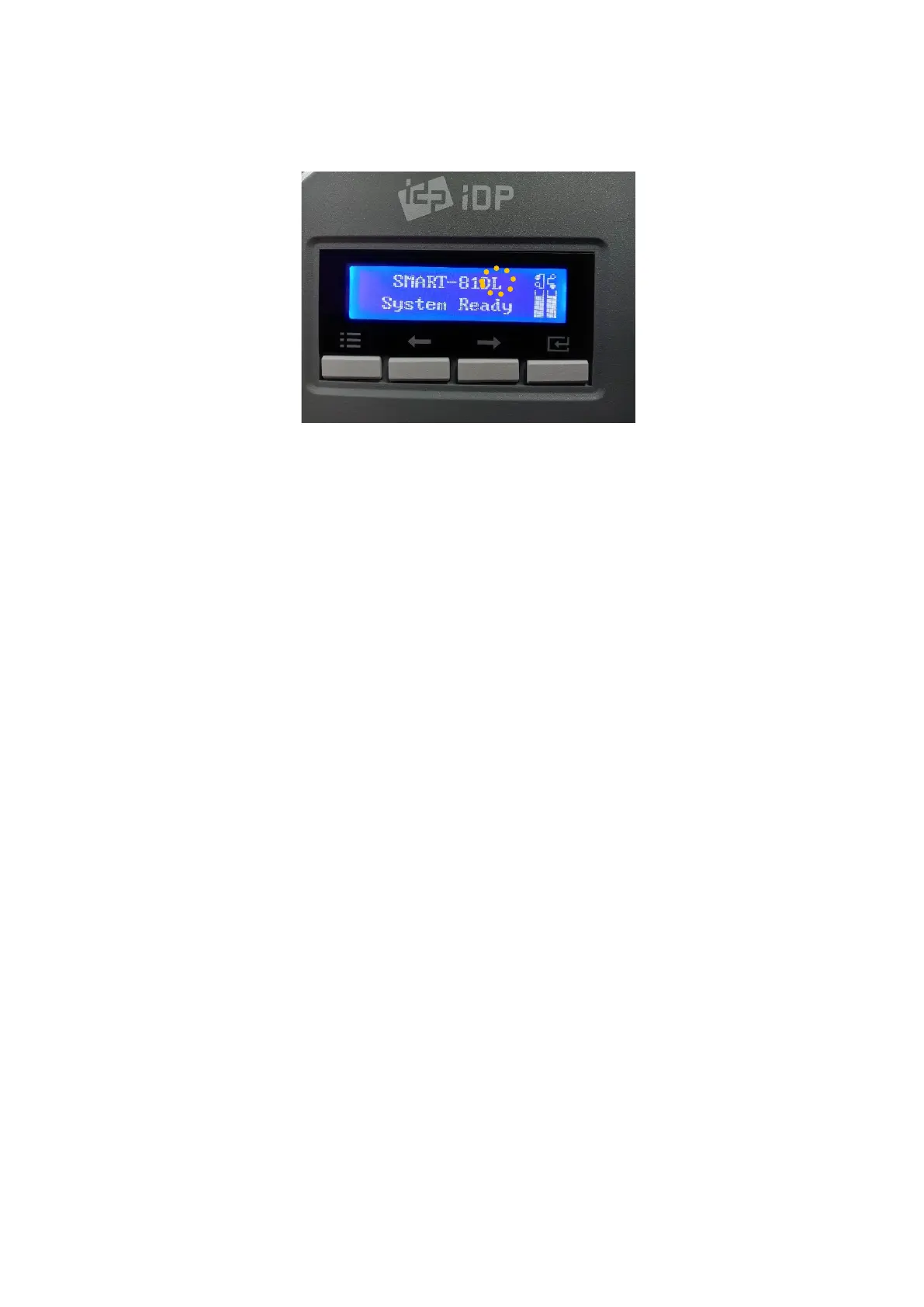

(3) If the module is installed successfully and printer is completely booted, ‘L’ I will

be added to the LCD as shown picture to confirm that the laminator installation

is complete.

Figure 44 LCD display (with Laminator)
