idp SMART-81 - Figure 82 Contactless Smartcard Encoding

To Next Page

To Previous Page

“Reset” is to finish the function electrically. After “Contact”, you can run “Read”,

“Write” and “Clear”.

“Get UID” is for getting Chip Serial Number(CSN).

“Read” and “Write” are to read and write the defined data (Name, Address and

Phone). These could not be applied to all cards.

“Clear” is to clear the displayed data (ATR, Name, Address and Phone).

In case the data is read and written using APDU, Read/Write can be done by APDU

commands.

“Load APDU” is to read the stored APDU commands.

“Save APDU” is to save the displayed APDU commands.

“Clear APDU” is to clear the APDU section.

“Send APDU” is to run the APDU commands.

Batch process repeats the following steps sequentially, Card “IN”  Move “RF” 

RF “Connect”

 Get UID RF “Discontact”  Card “OUT”

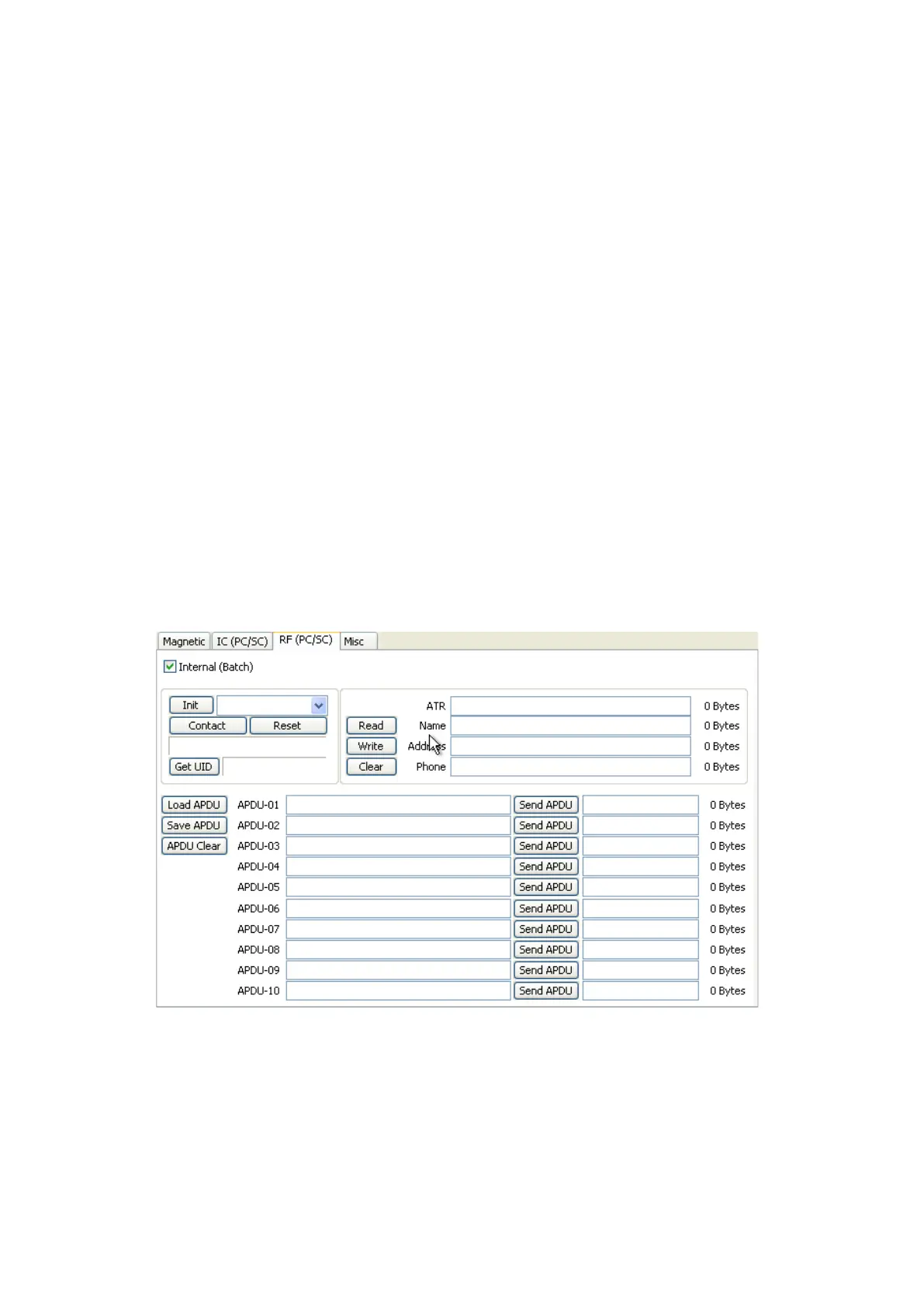

Figure 82 Contactless smartcard encoding
