(9) Upgrade network module firmware

 You can choose a firmware file.

 Select and save firmware file that need

to upgrade.

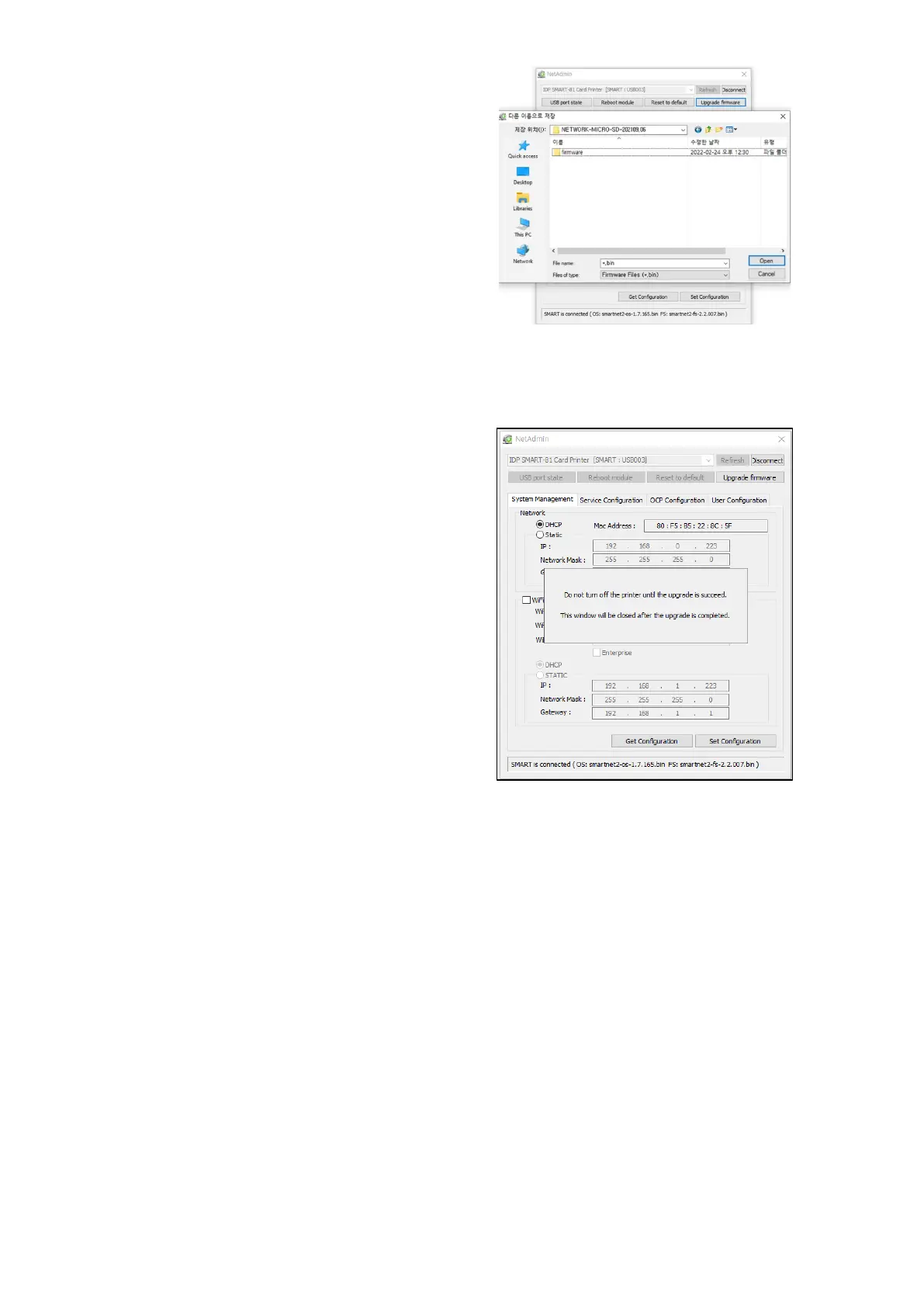

Figure 71 Upgrade the firmware 1

 Warning box will be shown during

firmware upgrade for network module.

 It is recommended not to do other work

during firmware upgrade for system

reliability.

Please do not turn off a printer until the

upgrade is completed.

Figure 72 Upgrade the firmware 2
