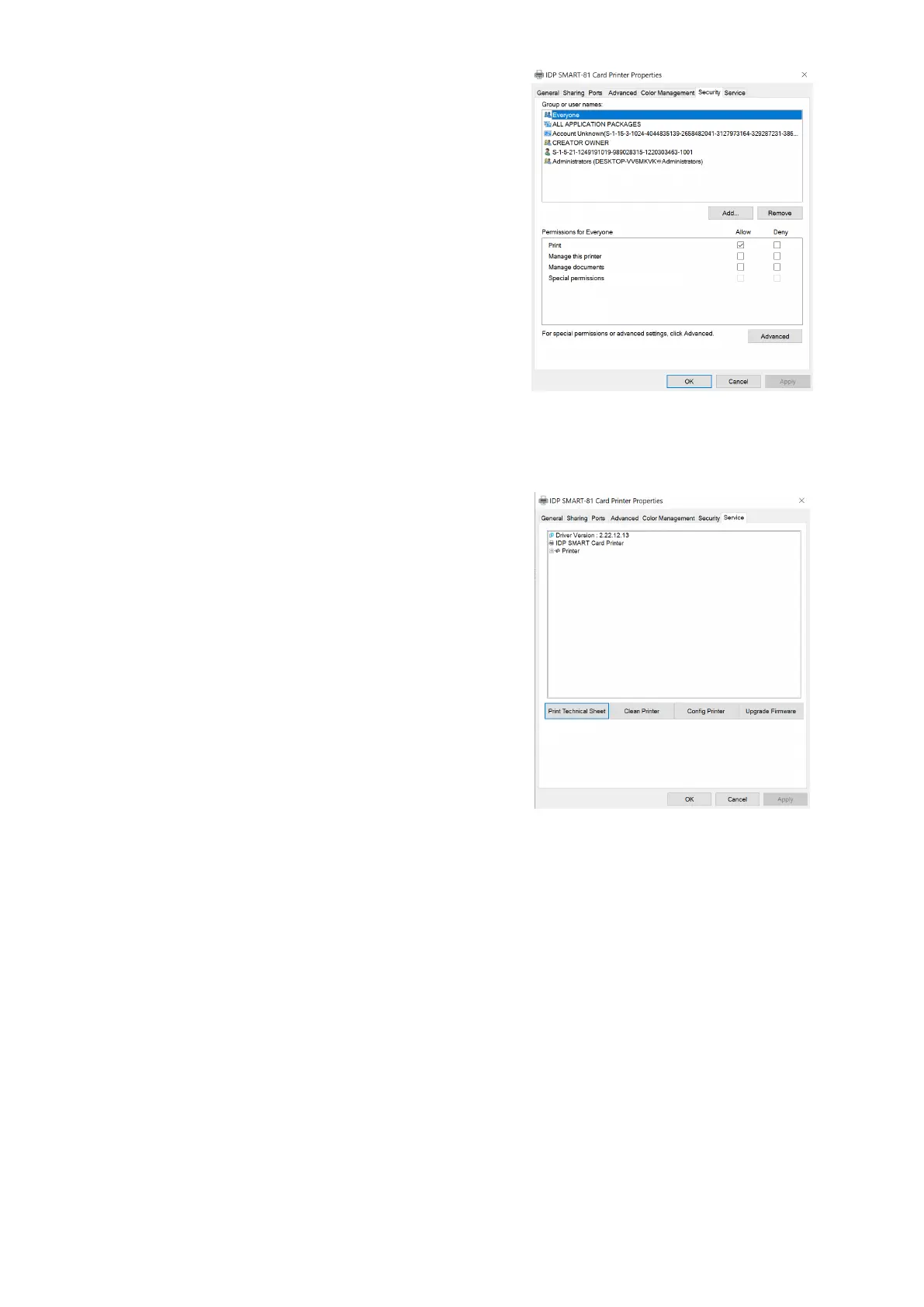

Security

You can set the permission to use a

printer. Depend on the permission, the

certain group or user can print, manage

the printer/documents or not.

Figure 57 security

(6)

Service

You can recognize the modules to

connect, printer serial, printer ID, driver

version, firmware version, type of ribbon &

balance and printer’s status.

You can print the “

technical support sheet”

on a card to check printer’s setup value.

You can print the “

technical support sheet”

on a card to check printer’s setup value.

Please click “Config Printer” to change the

printer settings. For further details, please

refer to “4. Utilities”

Click the “Upgrade Firmware” to popped

up the firmware upgrade window. For

further details, please refer to “4.4

Firmware update”

Figure 58 service
