1.1 Introduction

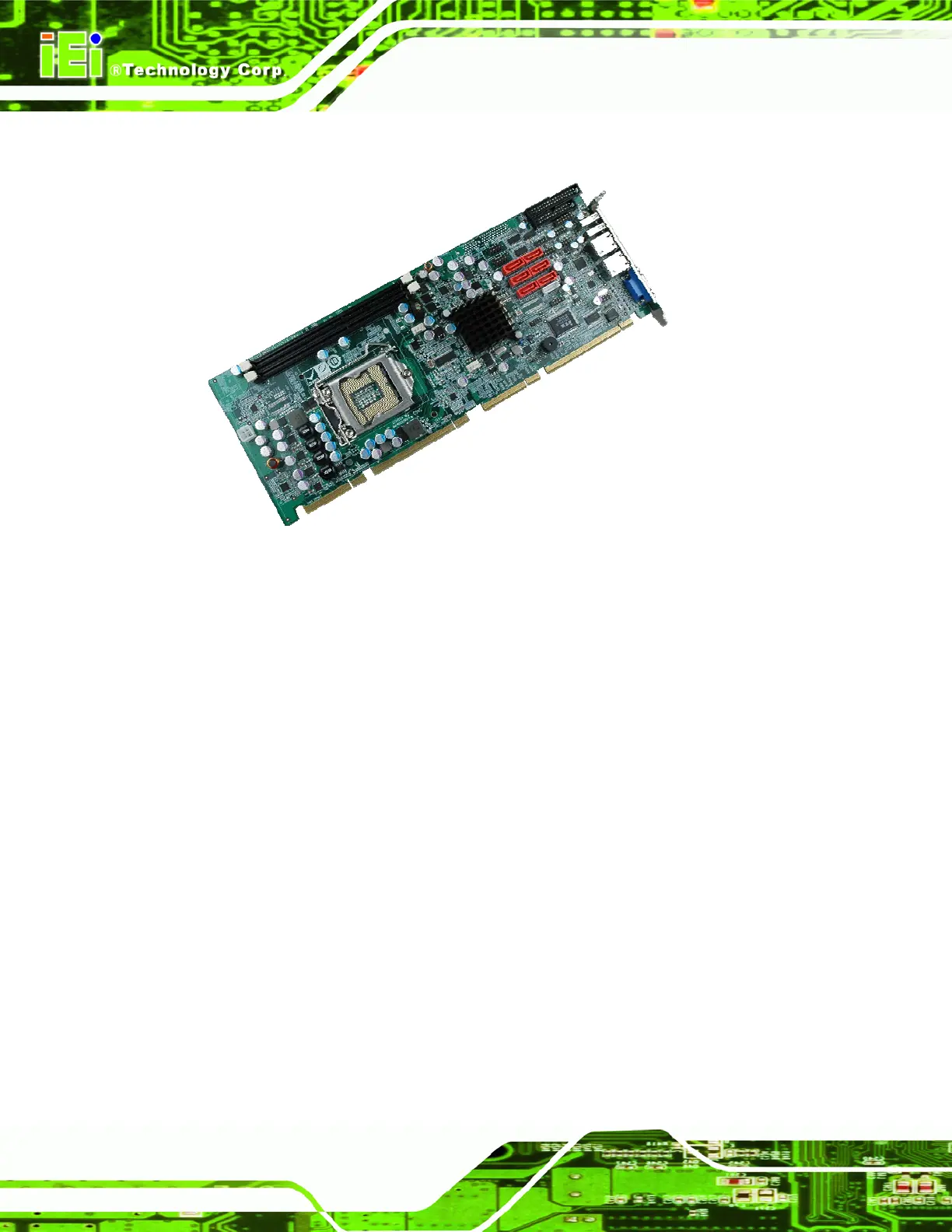

Figure 1-1: PCIE-Q57A
The PCIE-Q57A PICMG 1.3 CPU card is a Socket LGA1156 32nm Intel® Core i3, Core
i5 and Core i7 processor platform. Up to two 4.0 GB 1333 MHz, 1066 MHz or
800 MHz DDR3 SDRAM DIMM are supported by the Intel® processor. The processor also
supports a PCIe x16 slot on the backplane.
The PCIE-Q57A supports two GbE interfaces through the Intel® 82578DM Ethernet PHY
(with Intel® AMT 6.0 support) and the Intel® 82583V Ethernet controller.
The integrated Intel® Q57 Express Chipset supports six SATA 3Gb/s drives and RAID 0,
1, 5, 10. Twelve USB 2.0 channels, one PCIe x4 channel and PCI channels provide
flexible expansion options. High Definition Audio (HDA) support ensures HDA devices can
be easily implemented on the PCIE-Q57A.
