IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 41
4.4.3 DIMM Installation
To install a DIMM, please follow the steps below and refer to Figure 4-6.

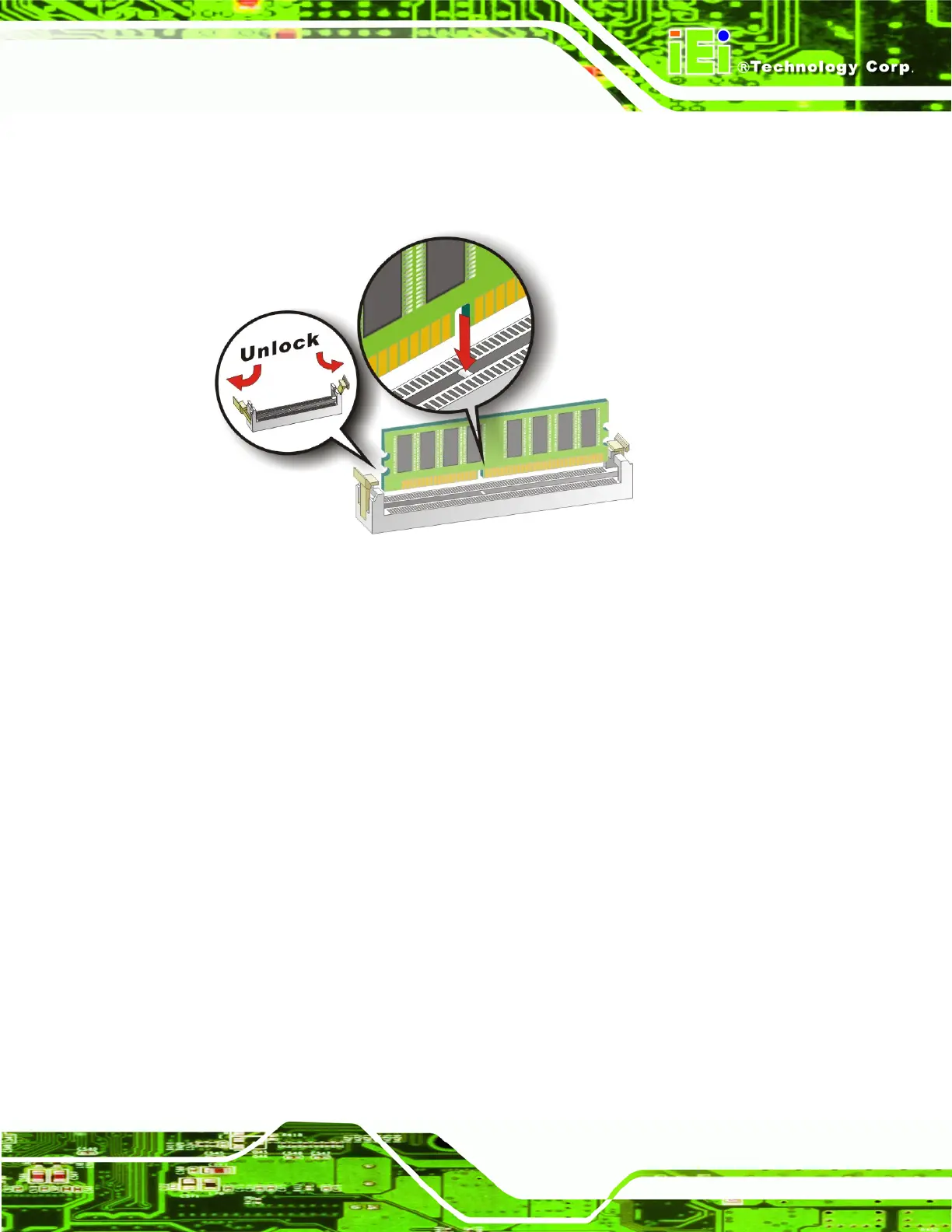

Figure 4-6: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See
Figure 4-6.
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See
Figure 4-6.
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See
Figure 4-6.
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket.Step 0:
