IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 46

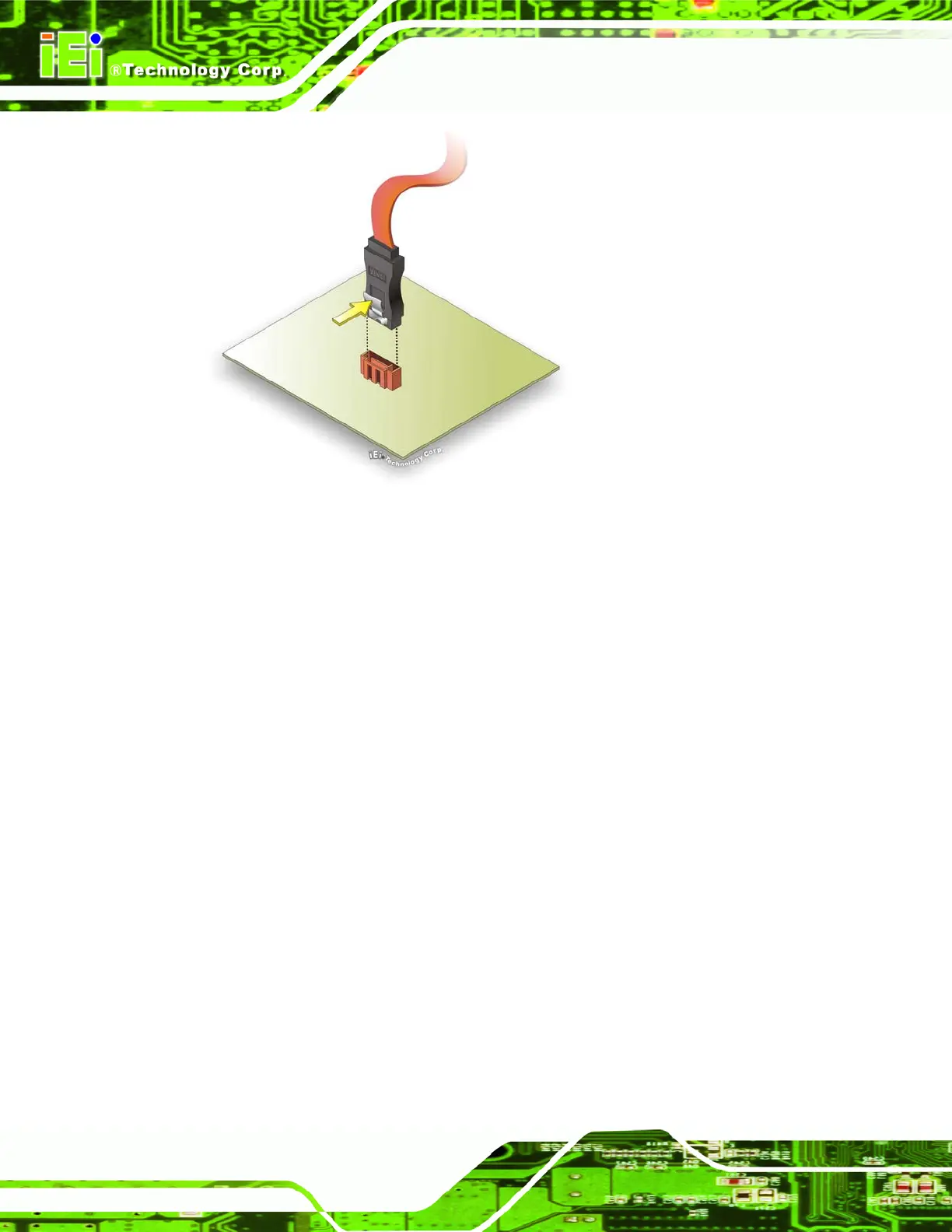

Figure 4-10: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See
Figure 4-11.
Step 4: Connect the SATA power cable. Connect the SATA power connector to the
back of the SATA drive. See
Figure 4-11.
