IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 30
3.3.2 USB Connectors
CN Label: USB_C1 and USB_C2
CN Type:
USB port
CN Location: See
6Figure 3-15
CN Pinouts: See
6Table 3-18
The PCIE-Q57A has two external USB 2.0 ports. The ports connect to both USB 2.0 and
USB 1.1 devices.
PIN NO. DESCRIPTION
1 VCC
2 DATA-
3 DATA+
4 GROUND
Table 3-18: USB Port Connector Pinouts
3.3.3 VGA Connector
CN Label:
VGA1
CN Type:
15-pin Female
CN Location:
See
6Figure 3-15
CN Pinouts:
See
6Figure 3-17 and 6Table 3-19
The PCIE-Q57A has a single 15-pin female connector for connectivity to standard display
devices.

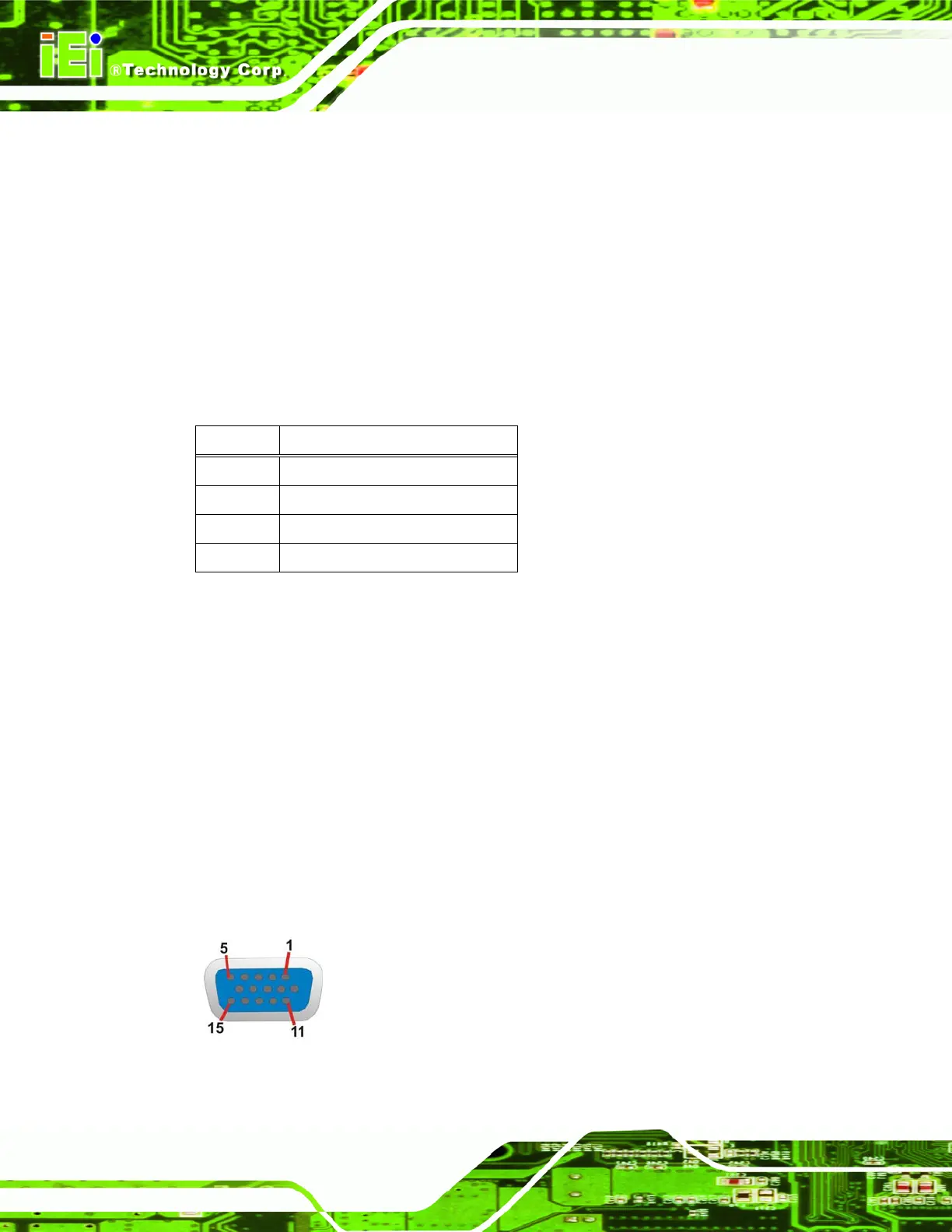

Figure 3-17: VGA Connector
