PCIE-Q57A PICMG 1.3 CPU Card
Page 29
3.3.1 Ethernet Connector
CN Label:
LAN1 and LAN2
CN Type:
RJ-45
CN Location:
See
6Figure 3-15
CN Pinouts:
See
6Table 3-16
The PCIE-Q57A is equipped with two built-in RJ-45 Ethernet controllers. Each controller
can connect to the LAN through one RJ-45 LAN connector.
PIN DESCRIPTION PIN DESCRIPTION
1 TRD1P0 5 TRD1P2
2 TRD1N0 6 TRD1N2
3. TRD1P1 7 TRD1P3
4. TRD1N1 8 TRD1N3
Table 3-16: LAN Pinouts
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the speed. See
6Table
3-17.
Speed LED Activity/Link LED
STATUS
DESCRIPTION STATUS DESCRIPTION
Off 10 Mbps connection Off No link
Green 100 Mbps connection Yellow Linked
Orange 1 Gbps connection Blinking TX/RX activity
Table 3-17: RJ-45 Ethernet Connector LEDs

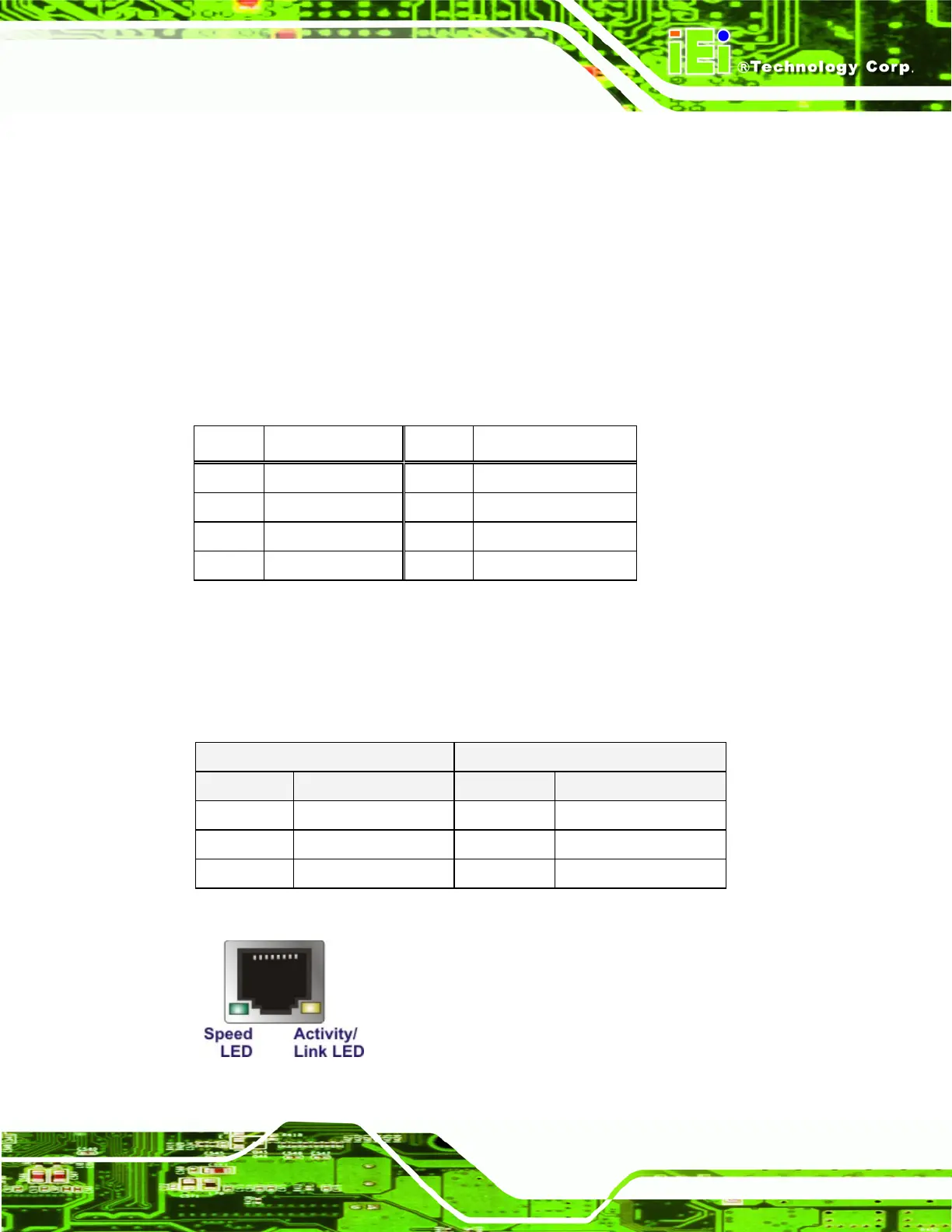

Figure 3-16: RJ-45 Ethernet Connector
