PCIE-Q57A PICMG 1.3 CPU Card
Page 25
The six SATA 3Gb/s drive connectors are each connected to a SATA 3Gb/s drive. The
SATA 3Gb/s drives transfer data at speeds as high as 3.0 Gb/s.

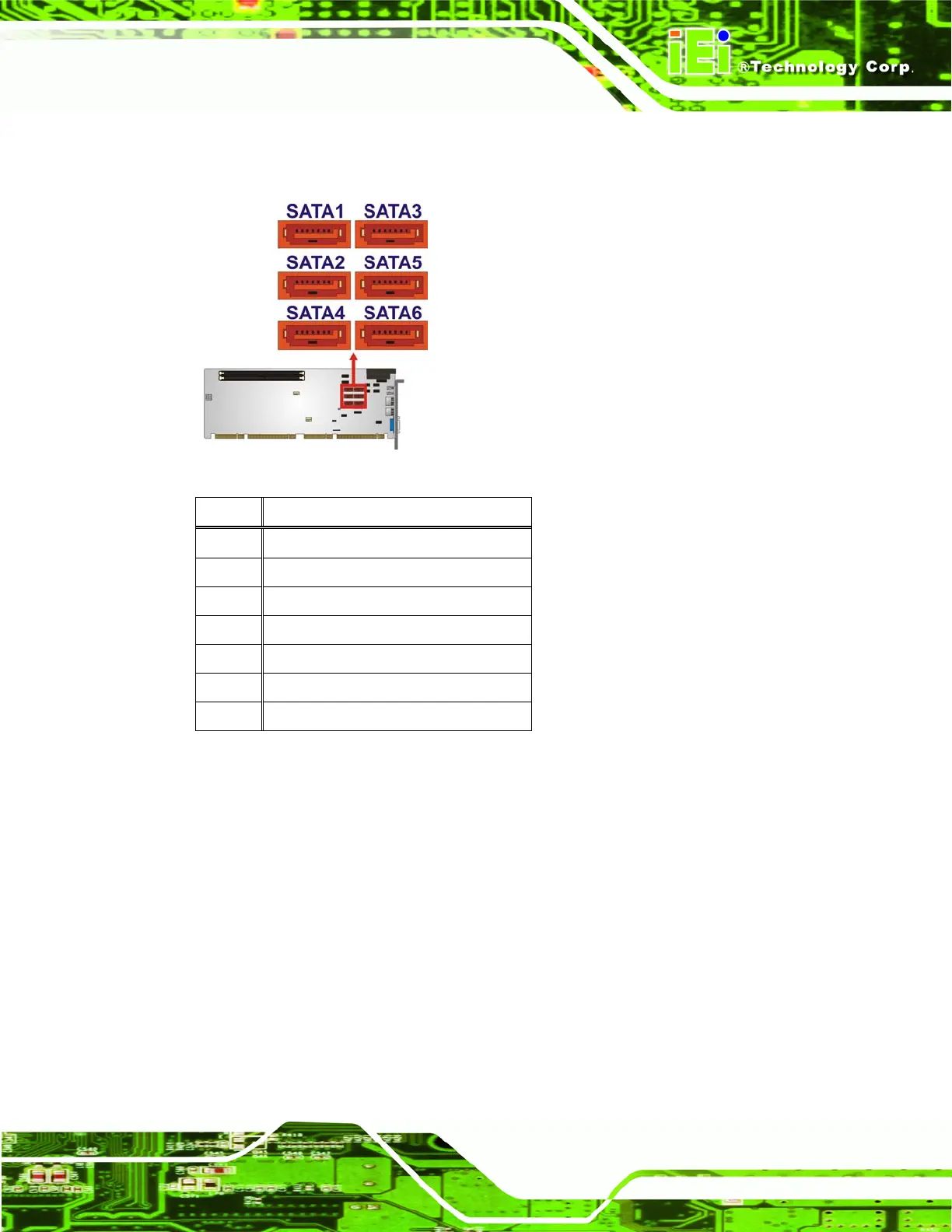

Figure 3-11: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-12: SATA Drive Connector Pinouts
3.2.11 Serial Port Connectors (RS-232)
CN Label:
COM1 and COM2
CN Type:
10-pin header (2x5)
CN Location:
See
5Figure 3-12
CN Pinouts:
See
6Table 3-13
These connectors provide RS-232 communications.
