PCIE-Q57A PICMG 1.3 CPU Card
Page 47

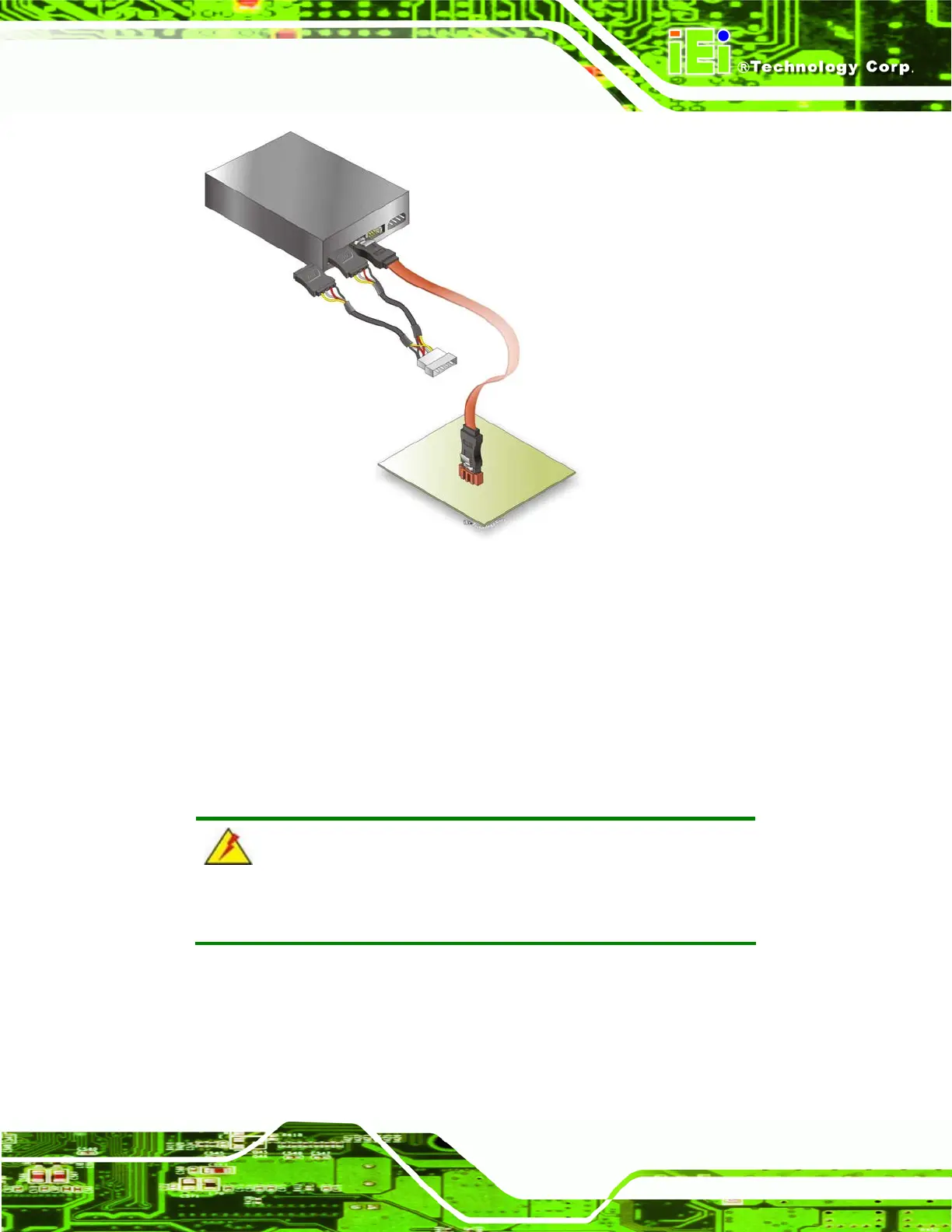

Figure 4-11: SATA Power Drive Connection
4.7.3 USB Cable (Dual Port) with Slot Bracket
The PCIE-Q57A is shipped with a dual port USB 2.0 cable. To connect the USB cable
connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on
each cable connector with pin 1 on the PCIE-Q57A USB connector.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
