IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 23

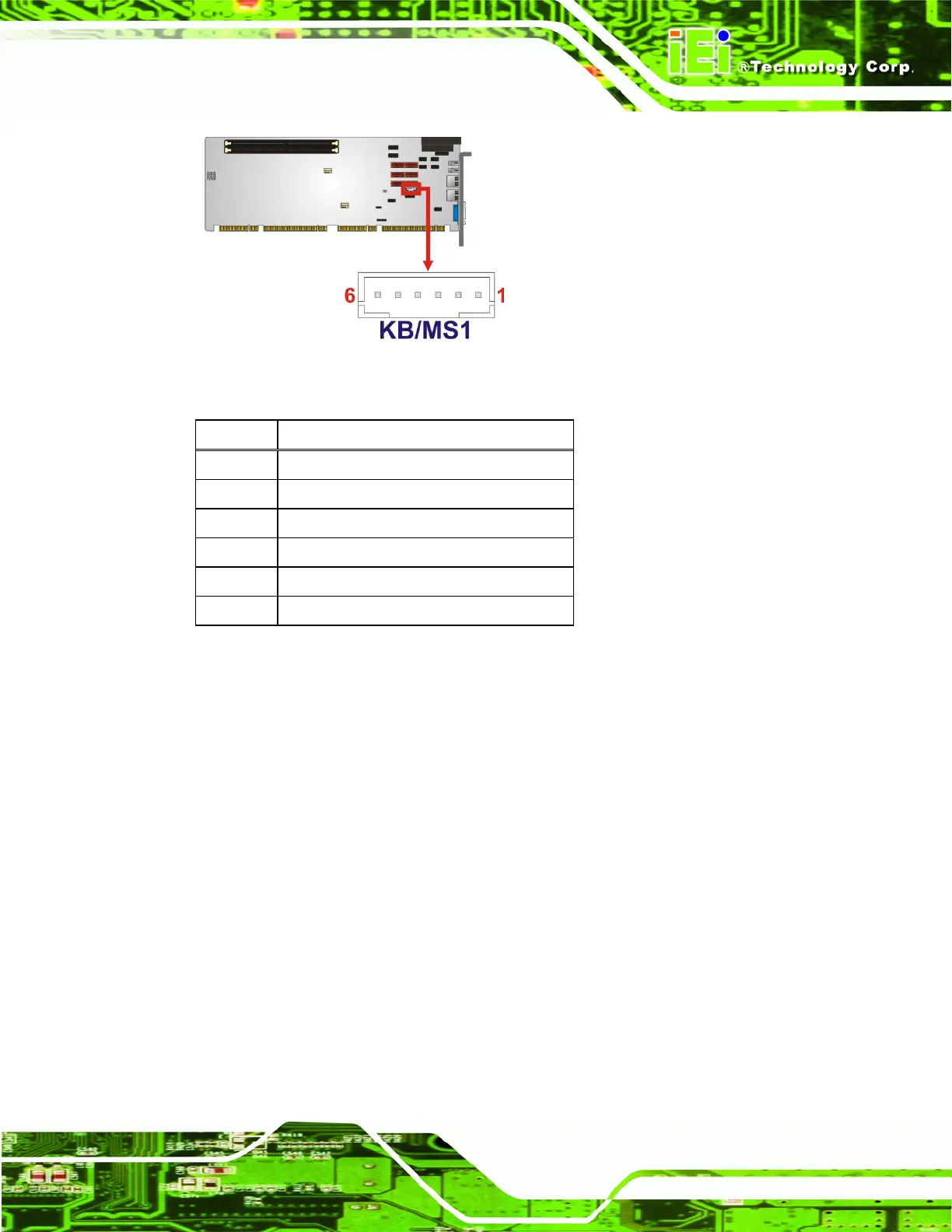

Figure 3-9: Keyboard/Mouse Connector Location
Pin Description
1 +5 VCC
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GROUND
Table 3-10: Keyboard/Mouse Connector Pinouts
3.2.9 Parallel Port Connector
CN Label: LPT1
CN Type:
26-pin box header
CN Location:
See
Figure 3-10
CN Pinouts:
See
Table 3-11
The parallel port connector connects to a parallel port connector interface or some other
parallel port device such as a printer.
