3.2.7 Infrared Interface Connector
CN Label: IR1
CN Type:
5-pin header (1x5)
CN Location:
See
Figure 3-8
CN Pinouts:
See
Table 3-9
The infrared connector attaches to an infrared receiver for use with remote controls.

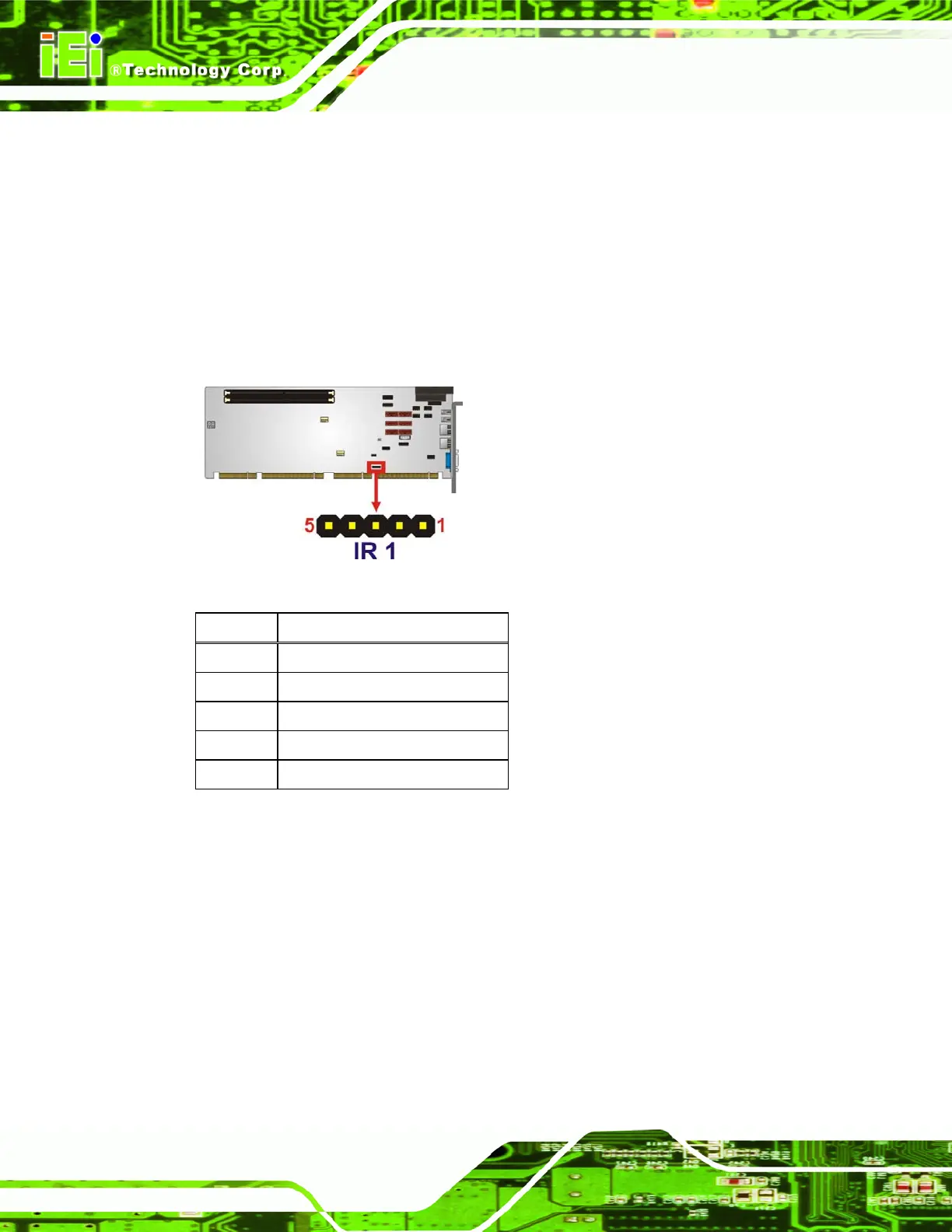

Figure 3-8: Infrared Connector Location
Pin Description
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 3-9: Infrared Connector Pinouts
3.2.8 Keyboard/Mouse Connector
CN Label: KB/MS1
CN Type:
6-pin wafer (1x6)
CN Location:
See
Figure 3-9
CN Pinouts:
See
Table 3-10
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a
PS/2 keyboard and mouse.
