PCIE-Q57A PICMG 1.3 CPU Card
Page 49
RJ-45 Ethernet cable connectors
USB devices
VGA monitors
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding PCIE-Q57A external peripheral interface connector making
sure the pins are properly aligned.
4.8.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the PCIE-Q57A. See
Figure 4-13.

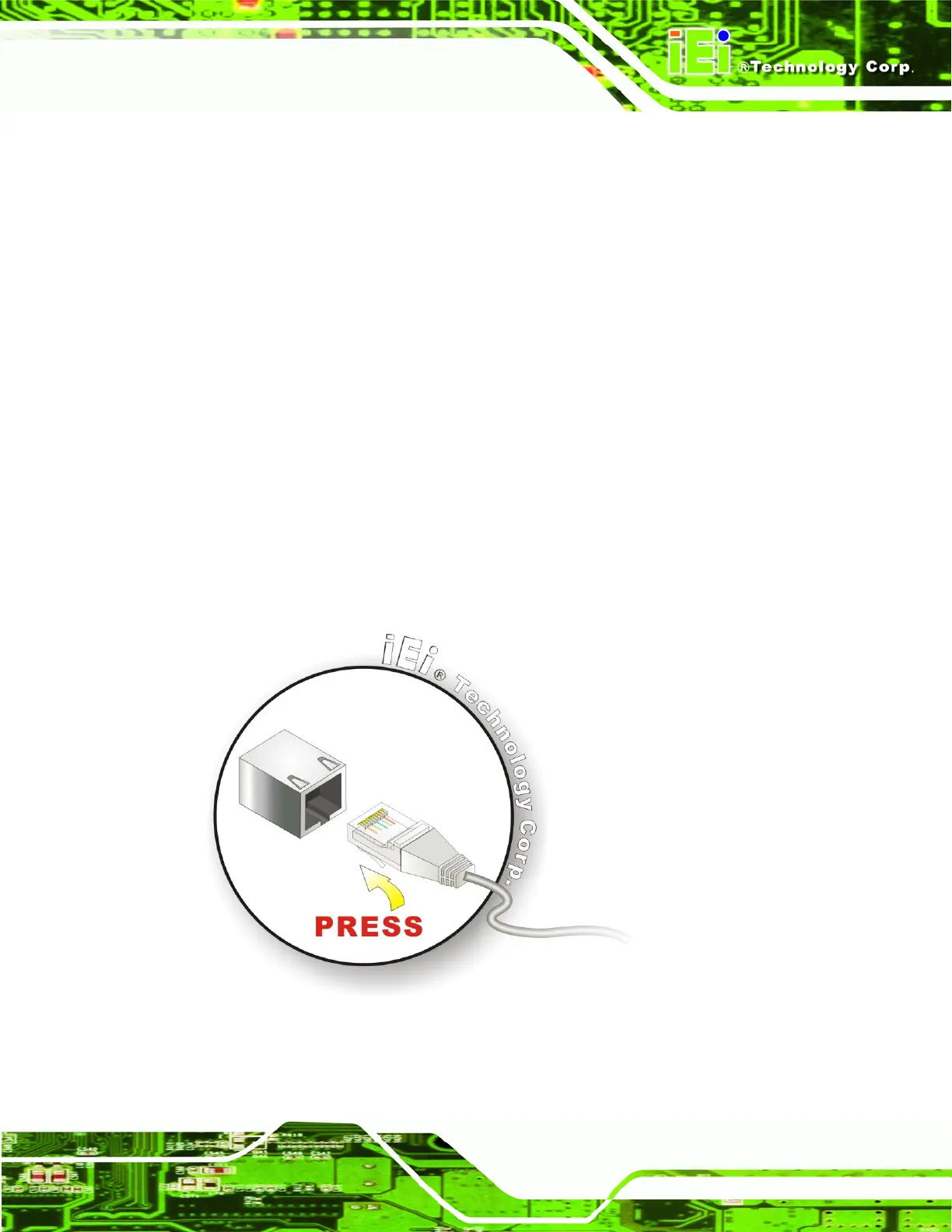

Figure 4-13: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
To Next Page
