Page 40

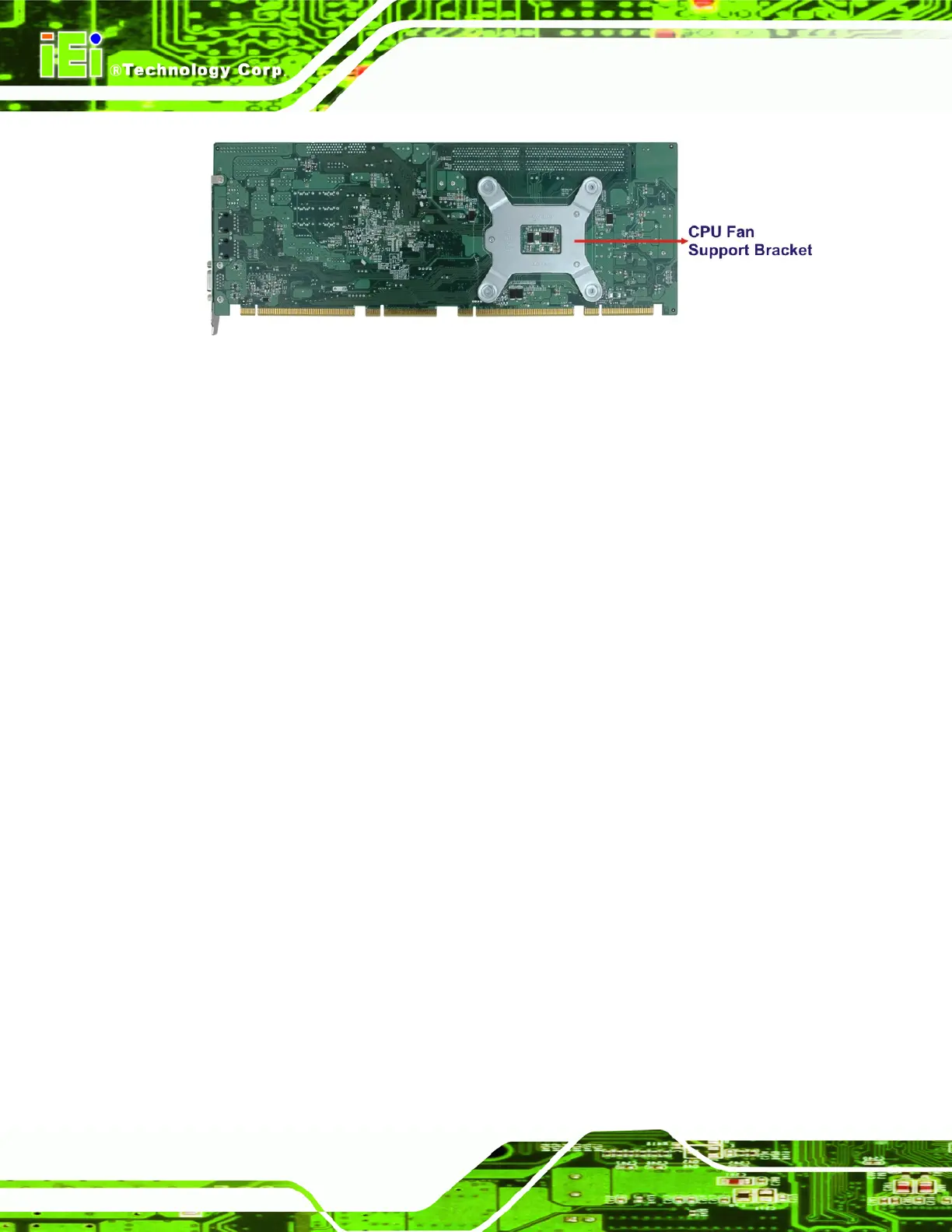

Figure 4-5: Cooling Kit Support Bracket
Step 2: Place the cooling kit onto the socket LGA1156 CPU. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass
through the holes of the cooling kit bracket.
Step 4: Secure the cooling kit by fastening the four retention screws of the cooling kit.
Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the PCIE-Q57A. Carefully route the cable and avoid heat generating chips
and fan blades.Step 0:
