IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 24

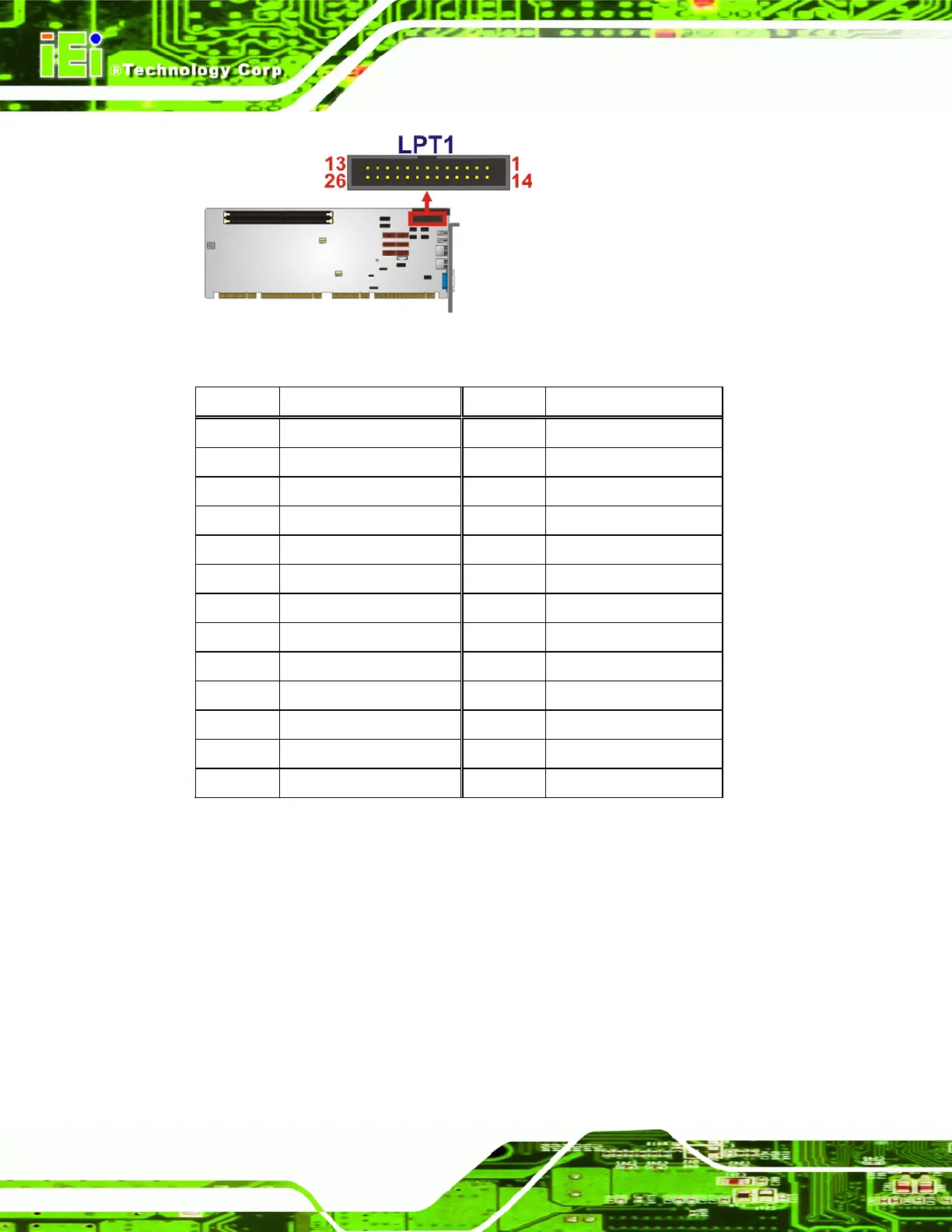

Figure 3-10: Parallel Port Connector Location
Pin Description Pin Description
1 STROBE# 14 AUTO FORM FEED #
2 DATA0 15 ERROR#
3 DATA1 16 INITIALIZE#
4 DATA2 17 PRINTER SELECT LN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACKNOWLEDGE# 23 GND
11 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 PRINTER SELECT
Table 3-11: Parallel Port Connector Pinouts
3.2.10 SATA Drive Connectors
CN Label:
SATA1, SATA2, SATA3, SATA4, SATA5 and SATA6
CN Type:
7-pin SATA drive connectors
CN Location:
See
5Figure 3-11
CN Pinouts:
See
5Table 3-12
