IEI Technology PCIE-Q57A User Manual

PCIE-Q57A PICMG 1.3 CPU Card
Page 17
CN Pinouts: See Table 3-3
The connector supports the 12V power supply.

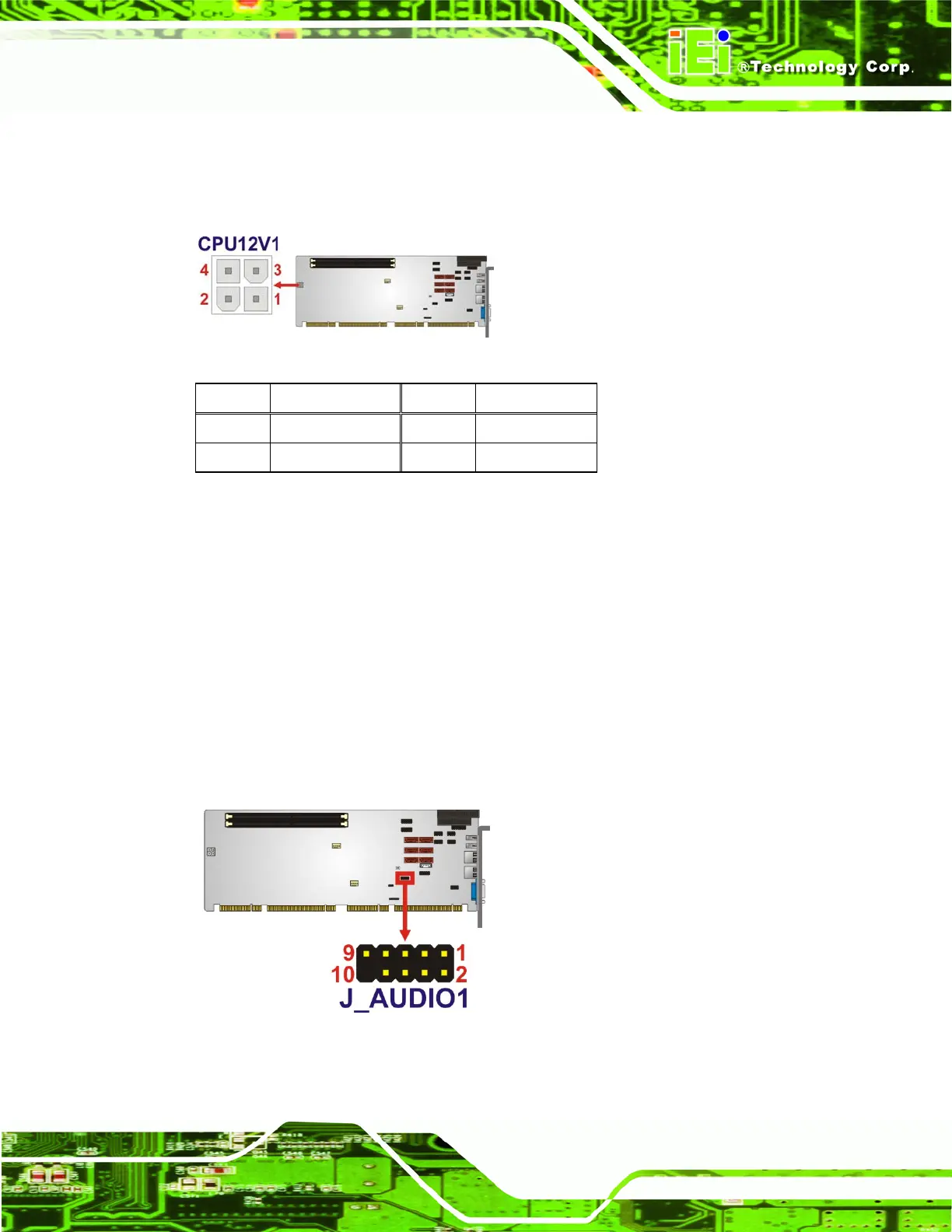

Figure 3-2: CPU 12V Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 GND
3 +12V 4 +12V
Table 3-3: CPU 12V Power Connector Pinouts
3.2.2 Audio Kit Connector
CN Label:
J_AUDIO1
CN Type:
10-pin header (2x5)
CN Location:
See
Figure 3-3
CN Pinouts:
See
Table 3-4
This connector connects to an external audio kit.
Figure 3-3: Audio Connector Location
