PCIE-Q57A PICMG 1.3 CPU Card
Page 48
Step 3: Insert the cable connectors. Once the cable connectors are properly aligned
with the USB connectors on the PCIE-Q57A, connect the cable connectors to
the on-board connectors. See
Figure 4-12.

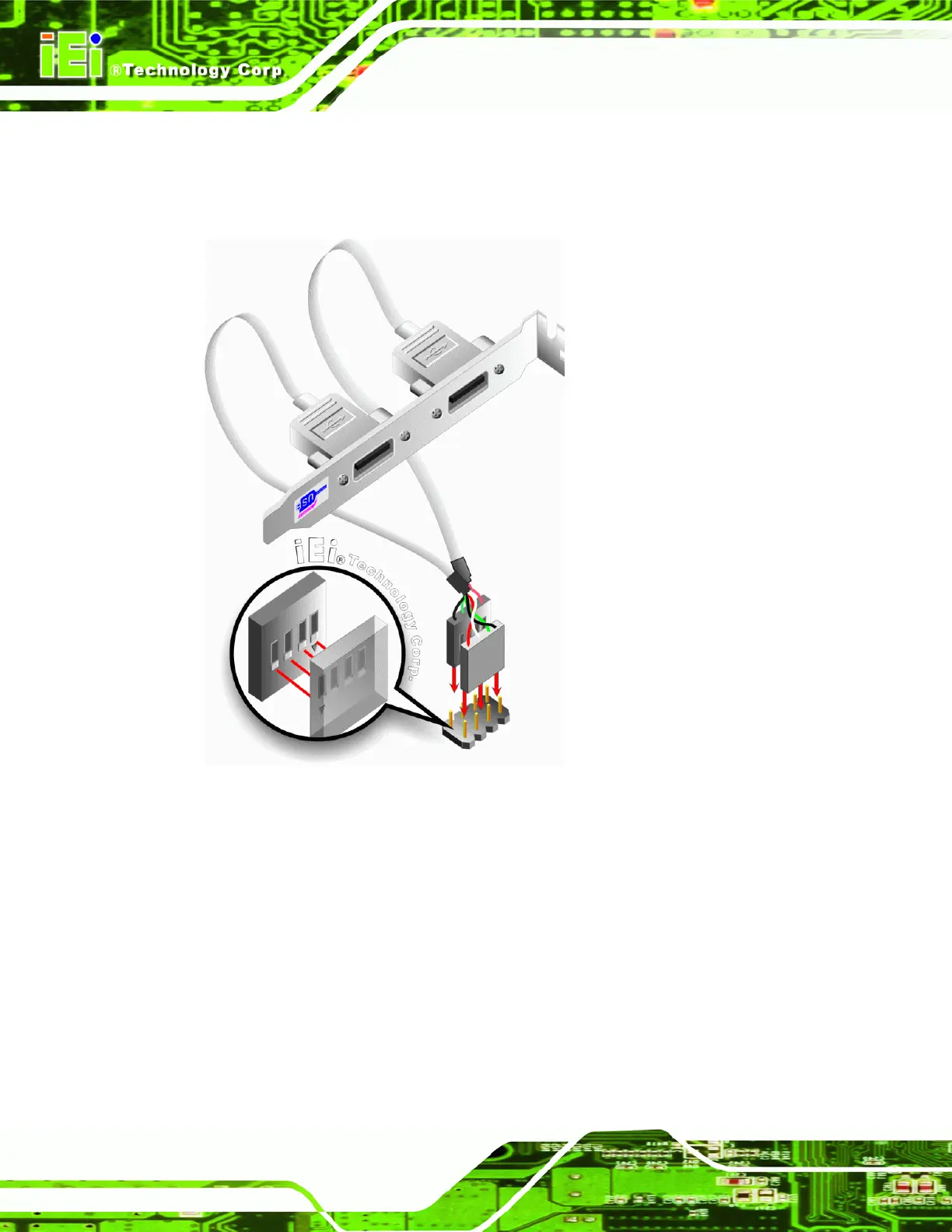

Figure 4-12: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation
instructions that came with the chassis.Step 0:
4.8 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
