31
INSTALLER
USERMAINTENANCE TECHNICIAN
TECHNICAL DATA
13
14

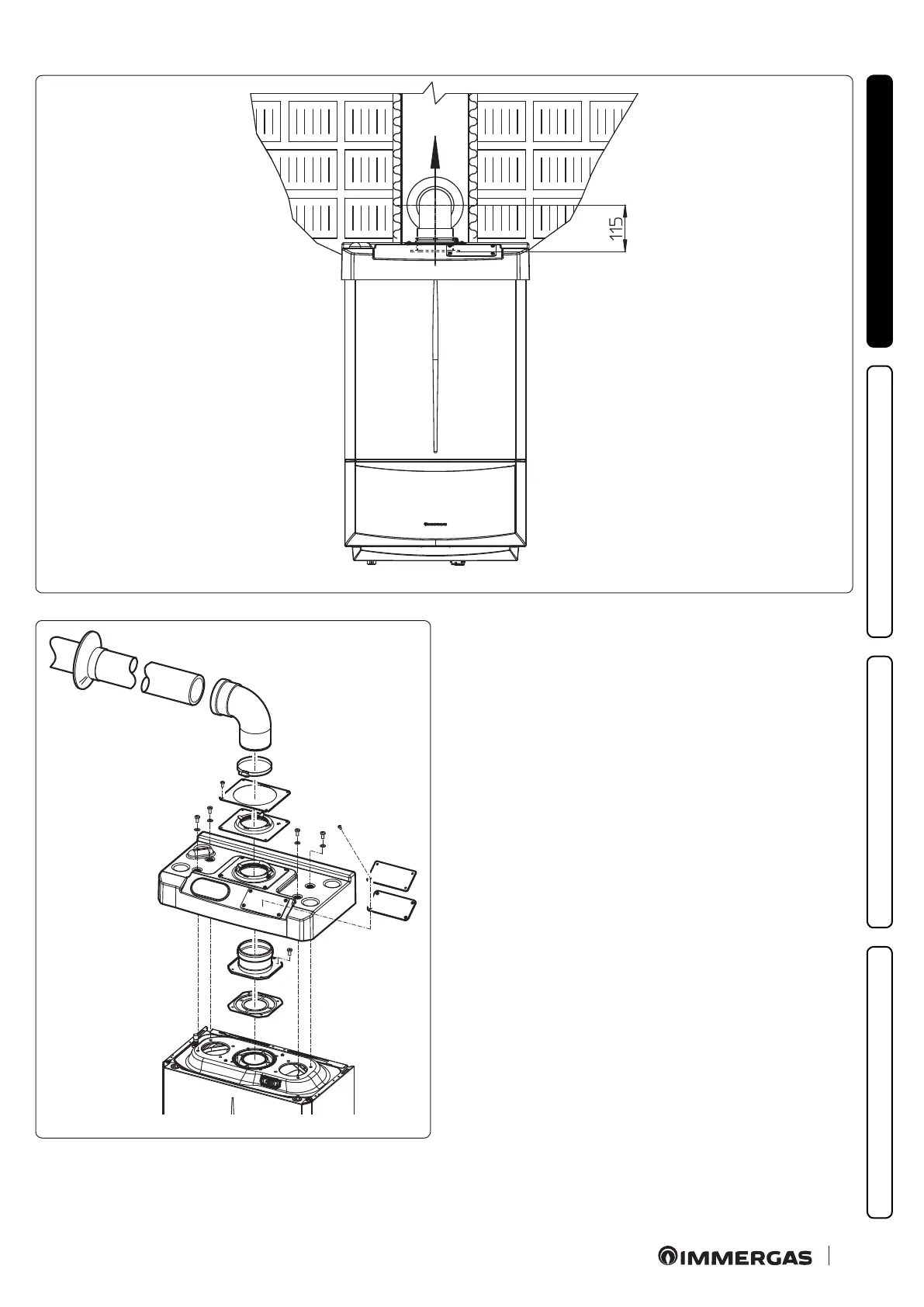

e cover kit includes (Fig. 14):
N°1 ermoformed cover
N°1 Gasket clamping plate
N°1 Gasket
N°1 Gasket tightening clip
e terminal kit includes (Fig. 14):
N°1 Gasket
N°1 Exhaust ange Ø 80
N°1 Ø 80 90° bend
N°1 Exhaust pipe Ø 80
N°1 Wall sealing plate
