INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

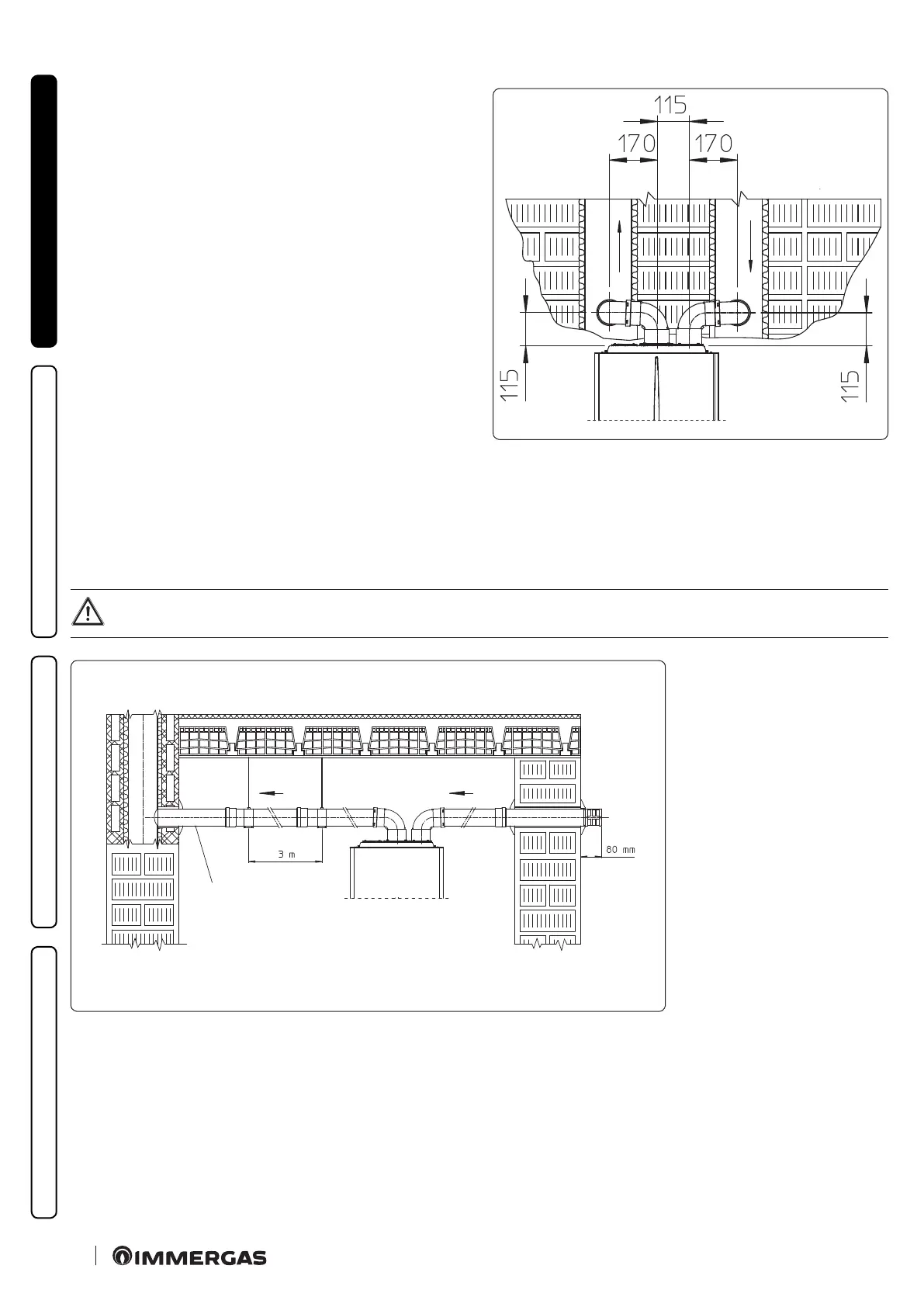

Installation clearances (Fig. 26)
e minimum installation clearance measurements of the Ø
80/80 separator terminal kit have been stated in some limit condi-
tions.
C
43
26
Extensions for separator kit Ø 80/80 (L = maximum length)
e maximum vertical straight length (without bends) that can be used for Ø 80 intake and exhaust pipes is 35 metres, regardless from
whether they are used for intake or exhaust.
e maximum horizontal straight length (with bend in suction and in exhaust) that can be used for Ø 80 intake and exhaust pipes is 35
metres, regardless from whether they are used for intake or exhaust.
Please note the type of installation C
43
must be done with a natural draught ue.
To aid in the removal of possible condensate forming in the exhaust pipe, tilt the pipes towards the appliance with a minimum
slope of 5% (Fig.27).
C
83
C
S
A
27
Key (Fig. 27):
A - Intake
C - Minimum slope 5%
S - Exhaust
L - Maximum length
