1 - 6
Transpector MPH Operating Manual
1.9 Physical Requirements
The following sections show the physical dimensions, weight, mounting
requirements, ventilation requirements, and the perimeter required for
maintenance access for Transpector MPH.
1.9.1 Physical Dimensions

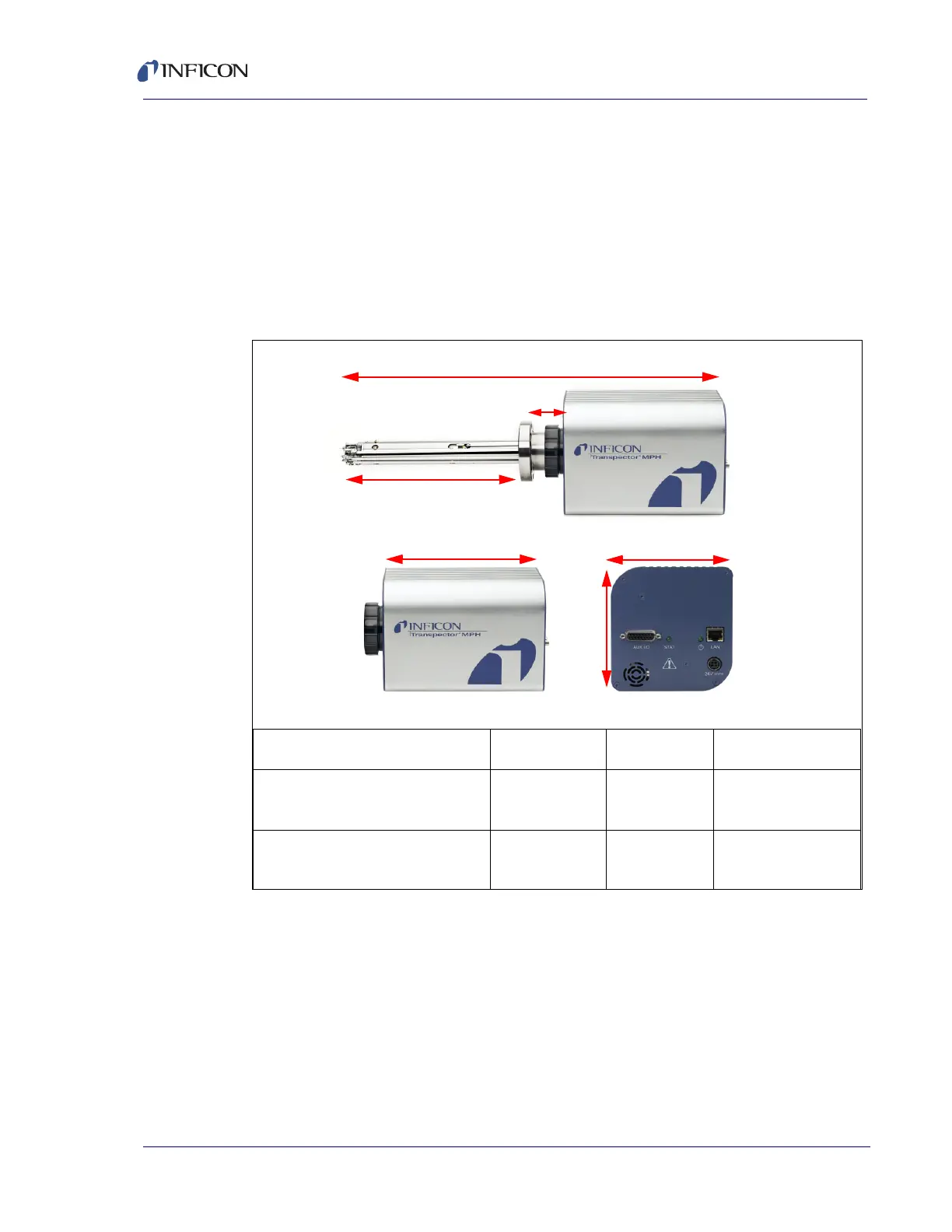

Figure 1-1 shows the overall physical dimensions for Transpector MPH.
Figure 1-1 Physical dimensions
1.9.2 Weight
The Transpector MPH electronics module weighs 1.53 kg (3 lb. 6 oz.). The
Transpector MPH systems total weight depends on which sensors are used.
Transpector MPH (A) (B) (C)
MPH100F, MPH200F,
MPH300F
143 mm
(5.63 in.)
50 mm
(1.98 in.)
365.7 mm
(14.40 in.)
MPH100M, MPH200M,
MPH300M
199 mm
(7.83 in.)
50 mm
(1.98 in.)
421.6 mm
(16.60 in.)
(C)
(B)
(A)
169.9 mm (6.69 in.)
121.7 mm
115.1 mm (4.53 in.)
(4.79 in.)
