1.18.1 Installing the Calibration Reference on to the Extension Flange
1 Install the VCR gasket into the female port of the extension flange.
2 Connect the 4-VCR male connection of the calibration reference to the 4-VCR
female connection of the extension flange. See Figure 1-11.
3 Tighten the connection following standard VCR gasket protocols: finger-tighten
the connection, then tighten it 1/8 to 1/4 turn by wrenches.

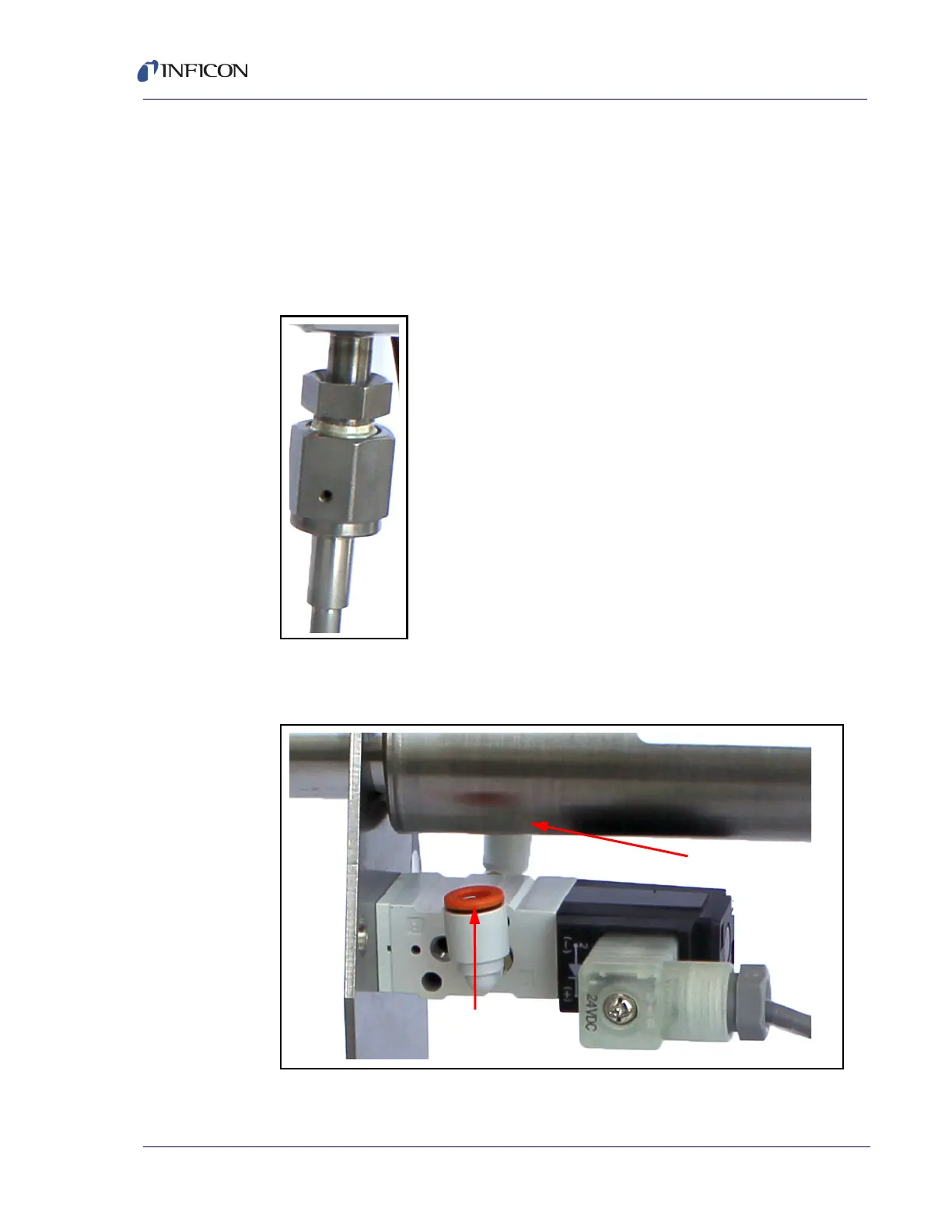

Figure 1-11 HPR VCR connection
4 Screw the 1/4 in. and 1/8 in. gas line connections into the solenoid.
See Figure 1-12.
Figure 1-12 Gas connections
1/4 in. Connection
1/8 in. Connection
