1 - 21
Transpector MPH Operating Manual
5 Connect the supplied 1/8 in. nylon hose into the 1/8 in. connection of the
solenoid.
6 Connect the other end of the 1/8 in. nylon hose into the 1/8 in. gas connection
of the HPR valve. See Figure 1-13.

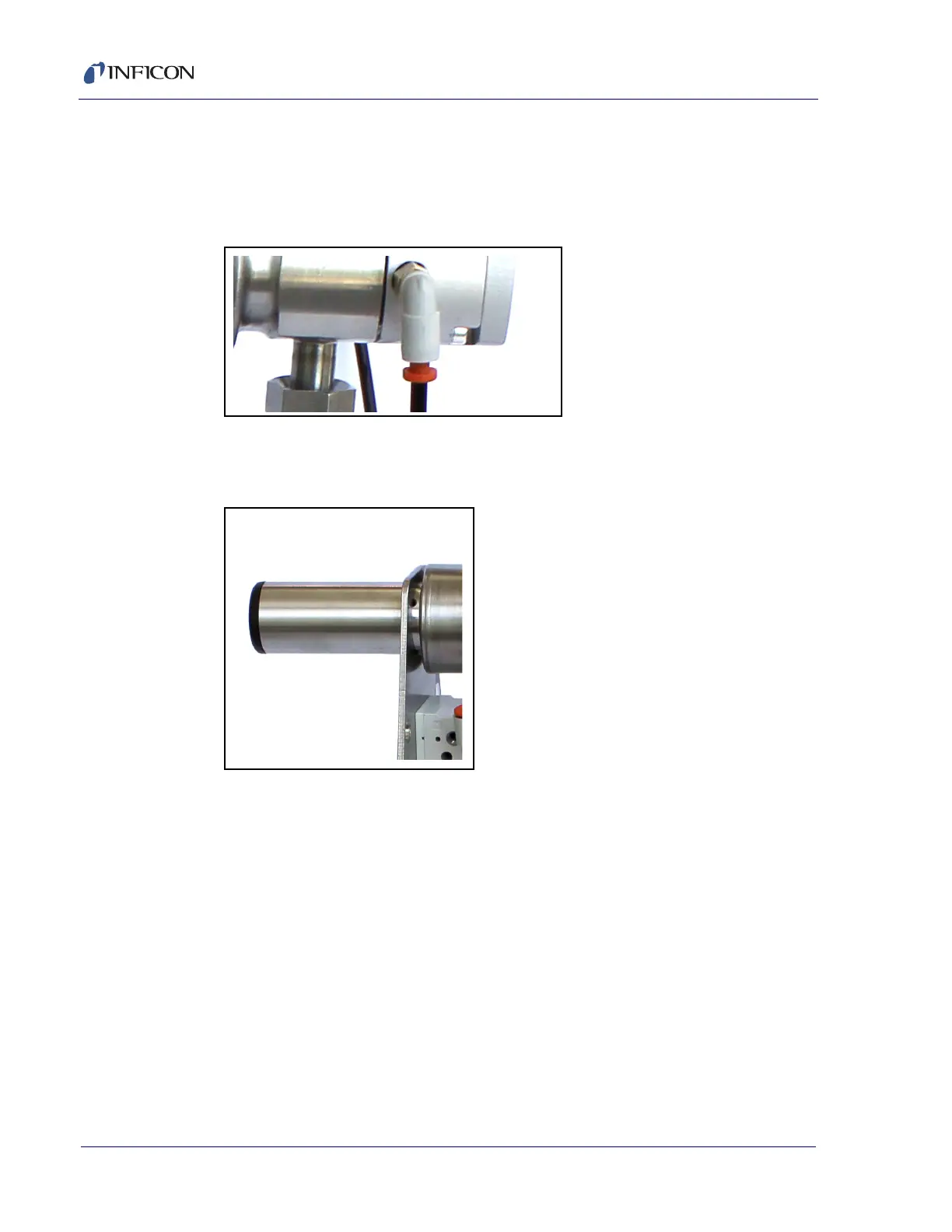

Figure 1-13 Valve gas connection
7 Insert the end of the calibration reference into the circular hole of the mounting
bracket. See Figure 1-14.
Figure 1-14 Calibration reference bracket connection
8 Connect the compressed air required for valve operation into the
1/4 in. connection of the solenoid.
