1.17 Installing the Pirani Interlock (Optional)
Transpector MPH has an optional Pirani Interlock. Transpector MPH with the Pirani
Interlock kit adds the following parts to all standard Transpector MPH shipped
items (see Figure 1-7):
(1) Special extension flange with a 4-VCR fitting (and installed sensor)
(2) INFICON PSG500 Pirani Gauge
(3) 4-VCR male-to-male right-angle connection
(4) VCR gaskets
(5) Interlock cable
(6) Washer
(7) Nut plate
(8) Silver coated stainless steel bolt
(9) Copper gasket CF40

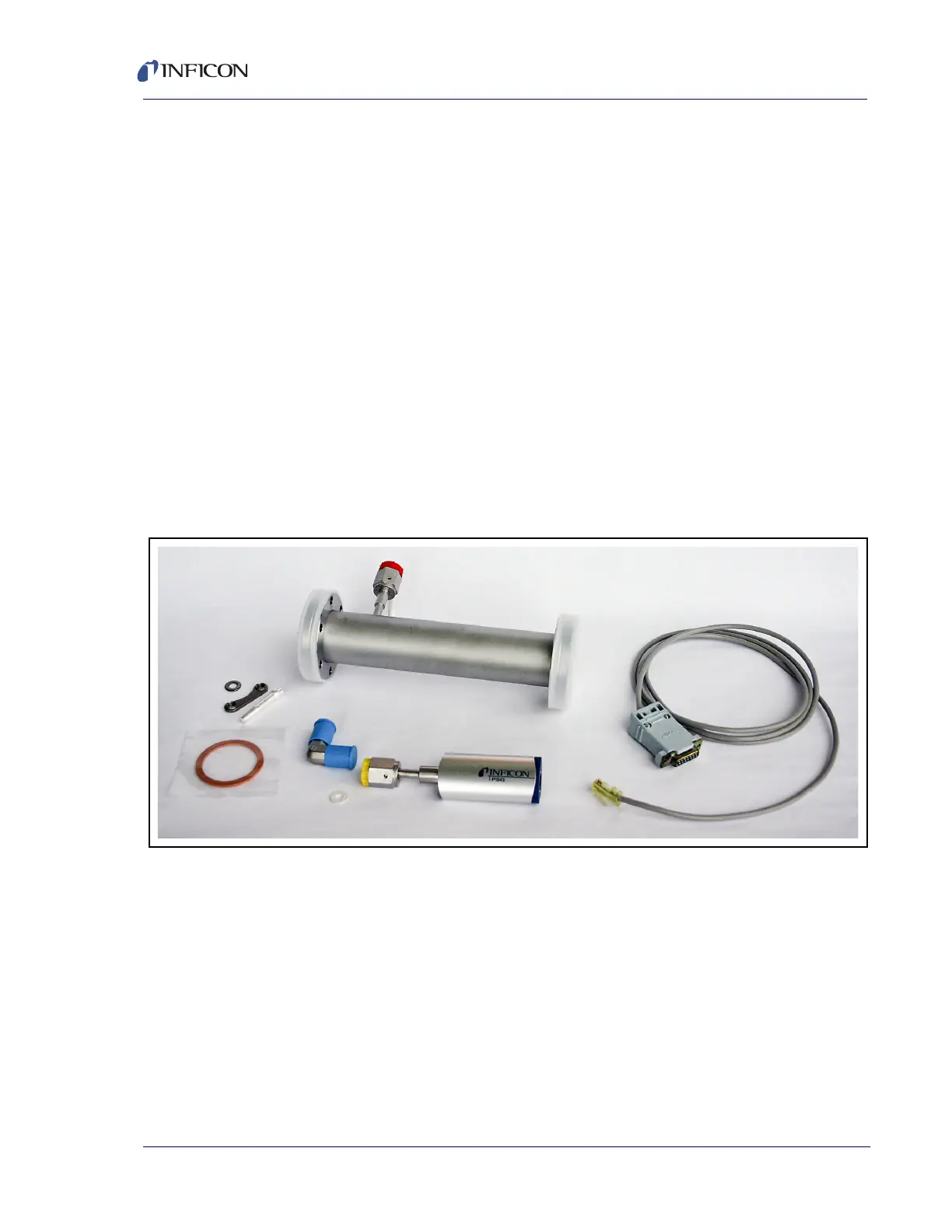

Figure 1-7 Pirani interlock parts
1
2
3
4
5
6
7
8
9
