Transpector MPH Operating Manual
1.16.3 Installing Ethernet Communications
Communication cables are required to connect Transpector MPH to the computer.
Ethernet communication is the default communication method for
Transpector MPH. Communication cables are required to connect Ethernet
communication uses standard RJ45, Cat5e Ethernet cables. To use Ethernet
communications, attach the supplied Cat5e Ethernet cable to the LAN port on the
back of the Transpector MPH electronics module. (See Figure 1-6.)
For networking information, see Chapter 2, Connecting Transpector MPH.

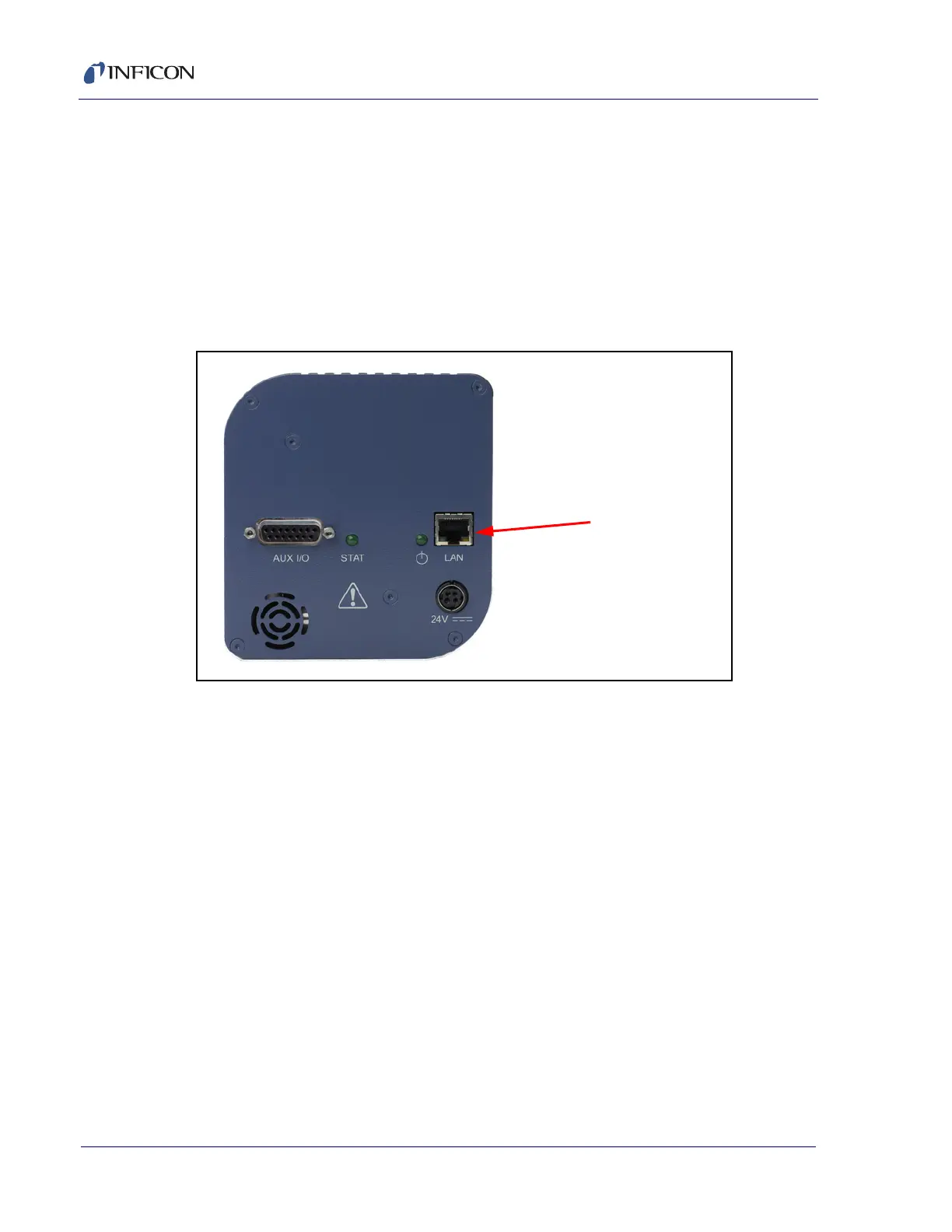

Figure 1-6 Ethernet port
1.16.4 Connecting the 24 V(dc) Power Supply
1 Connect the +24 V (dc) power supply cable to the 24V connector on the
Transpector MPH electronics module by sliding back the latch, installing the
cable, and then releasing the latch.
NOTE: The latch locks the connector to the electronics module, and must be
slid back to detach the cable from the Transpector MPH electronics
module.
2 Plug the AC line cord into the mating IEC320 connector on the power supply
module.
NOTE: The AC Line Input for the +24 V(dc) Power Supply must be rated:
90-260 V(ac), 40 W maximum, 47-63 Hz.
3 Plug the AC line cord into an appropriate AC outlet.
4 Verify that the green power indicator on the Transpector MPH back panel is
illuminated. If the green indicator is not illuminated, check the power
connections.
Ethernet Port
