Product Manual
42/88

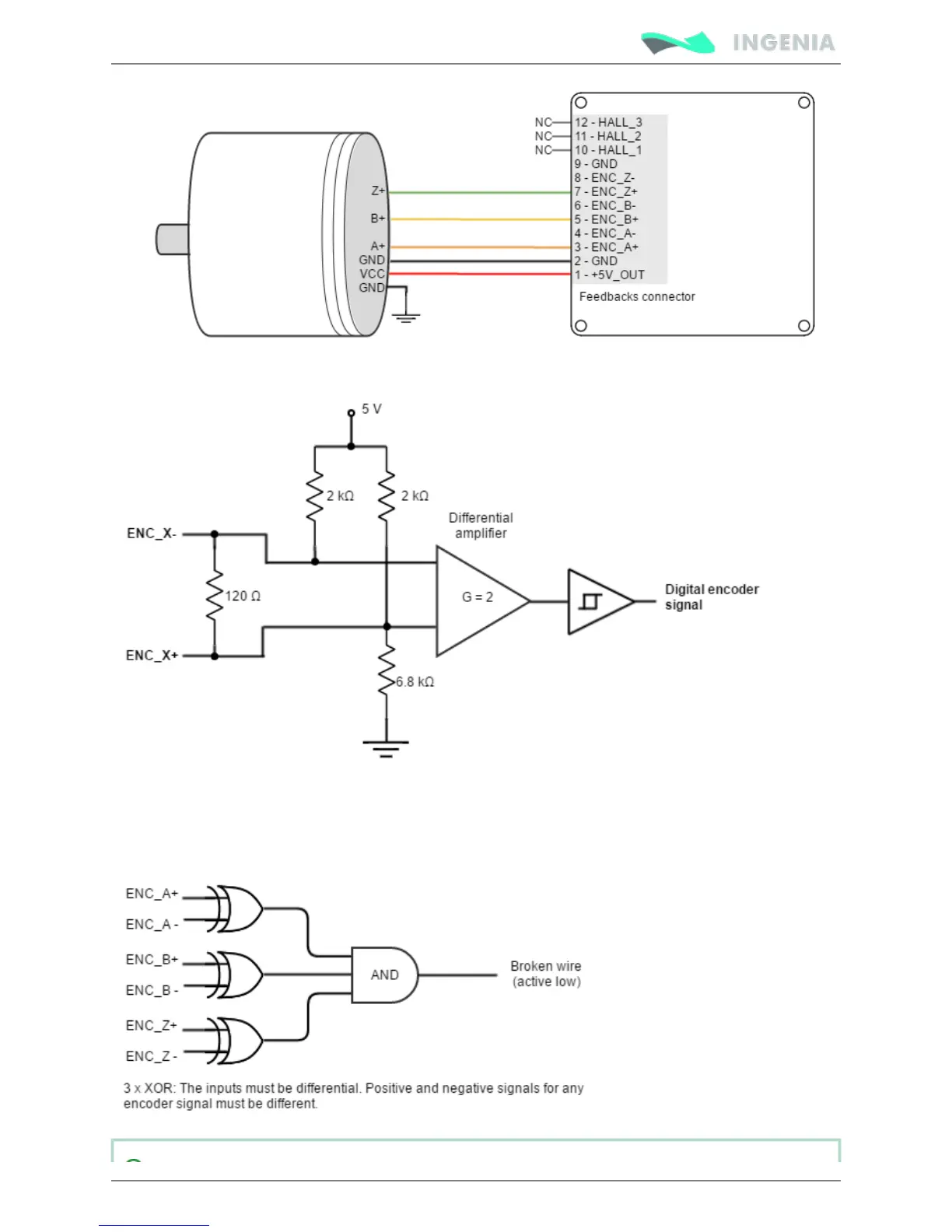

Next figure shows the circuit model of the digital encoder inputs.
Encoder broken wire detection
For differential digital encoders only a broken wire detection circuit is included. The circuit is based on 3
EX-OR gates .only works for differential encoders
