Specification Value
Maximum supply output 30 V (5-24 V typical)
Maximum sink/source current Source: low current @ 5 V: 5 mA
Sink: 500 mA @ 5 or 24 V
ON-OFF delay 124 μs @ 30 V and R = 100 kΩ
load
20 μs @ 5 V and R = 100 kΩ
load
OFF_ON delay 15μs @ 30 V and R = 100 kΩ
load
50 μs @ 5 V and R = 100 kΩ
load
Max working frequency 3.5 kHz

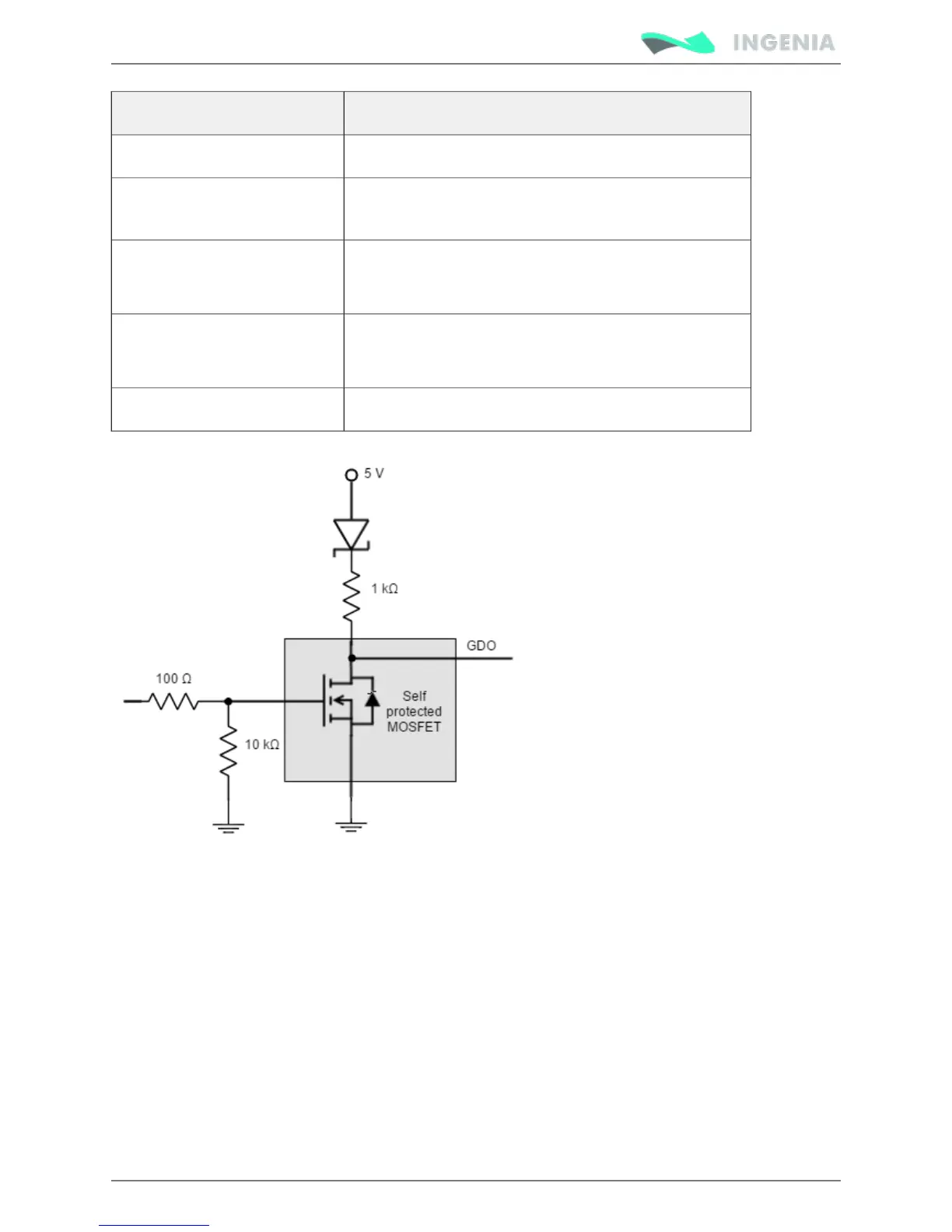

Next figure shows digital outputs circuit model.
Load should be connected in a different way depending on desired voltage levels.
5 V outputs
Next figure illustrates how to connect a load to 5 V digital outputs (GPO1 can also be used).
